KATO KT-HD60A HD PTZ Camera White

Price on request. Please sign up here first.

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: SW10306

SDI PTZ Broadcast Camera- KT-HD61A Full HD: 1080p60/50 Lens&Hov: 12x/20x optical zoom,... more

Close menu

Product information "KATO KT-HD60A HD PTZ Camera White"

SDI PTZ Broadcast Camera- KT-HD61A

Full HD: 1080p60/50
Lens&Hov: 12x/20x optical zoom, Wide Angle:58.7° optional
Abundant Outputs:

HDMI+SDI+USB2.0+IP
POE power supply optional
NDI|HX optional

Dual IP-Stream: H.264 and MJPEG compression enabling Full HD video stream by ultra low bandwidth over RTSP, TCP/IP, HTTP, etc
Low Noise
Low Light: High video quality in low light conditions

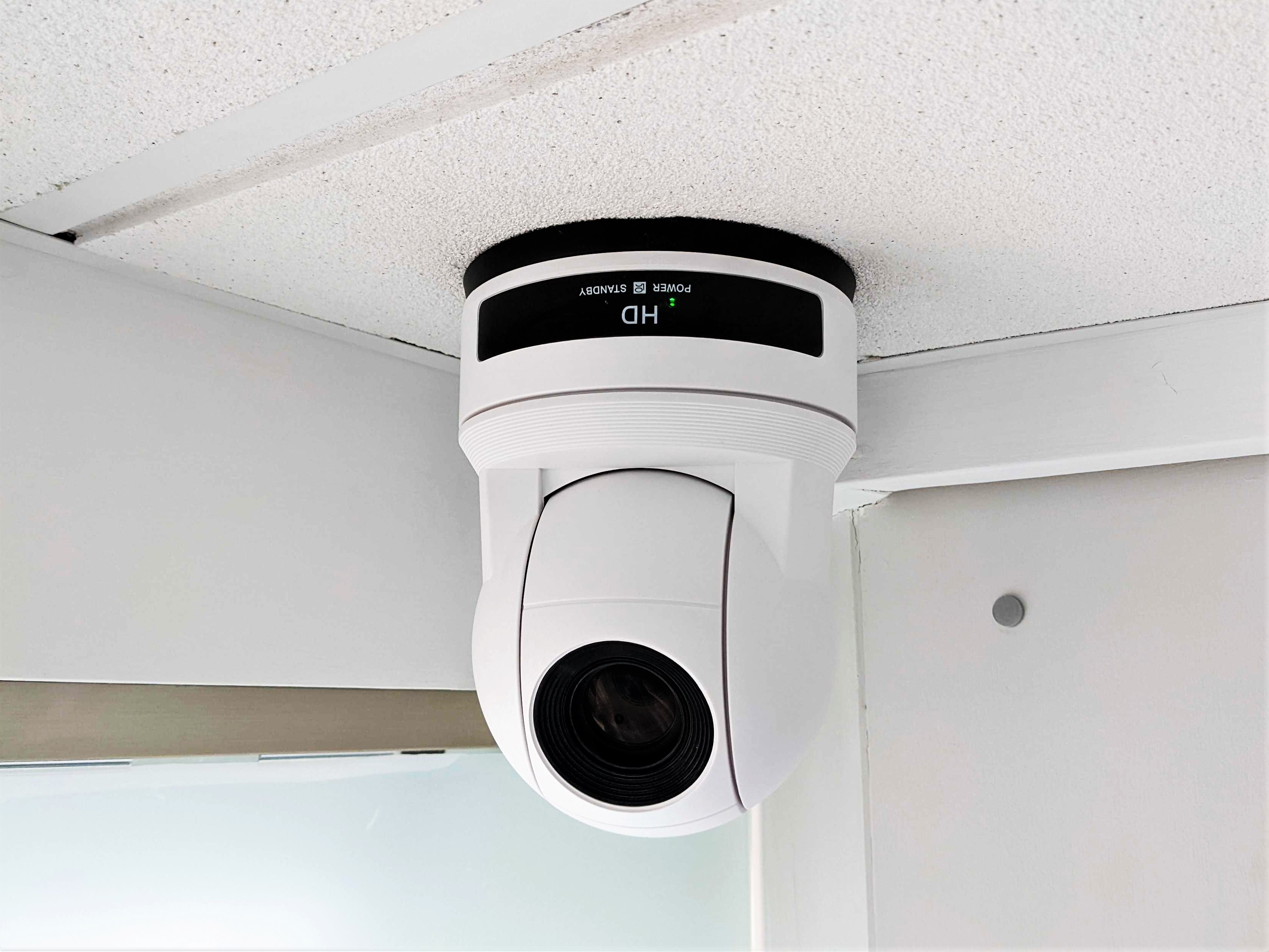

Wall mounting, desktop or ceiling mounting;
Full compatibility with SONY terminal.

Product Overview:

Video conferencing camera KT-HD61A is Professional developed communication type Color Camera mainly for the video conferencing industry. Adapt 1/2.8″ CMOS, 3.5 Megapixels, The maximum resolution can reach 1080P 60/50,20X Optical Zoom, with built-in High-Speed full PTZ, allows users to clearly observe small or distant targets.

Main Applications:

High Definition (HD) video conferencing camera KT-HD61A is widely used in Video Conference System, remote learning, Telemedicine, Church, Scene of the incident, courts, media centers, chain stores, transportation, airports and other monitoring sites.

Related links to "KATO KT-HD60A HD PTZ Camera White"

Available downloads:

Download data sheet

Item No. KT-HD60A Image Sensor SONY 1/2.8″ Progressive CMOS... more

Close menu

Specifications "KATO KT-HD60A HD PTZ Camera White"

Item No.	KT-HD60A
Image Sensor	SONY 1/2.8″ Progressive CMOS
Effective Pixels	3.50 Megapixels
Resolution HD	1080p60/50,1080i60/50,1080p30/25,720p60/50
Signal System	PAL/NTSC
Lens	20X optical zoom f=4.7mm(w)~94.0 mm(f) F1.6~F2.8
Horizontal View Angle	58.7°(W)~3.2°(T)
Pan	355°(max. speed:80°/s)
Tilt	-30° to +90° (max. speed: 60°/s)
Focus System	Auto/Manual
S/N Ratio	≥50db
Preset Position	9 preset positions by IR remote controller, 255 preset positions by Keyboard
Minimum Illumination	0.1Lux
Exposure Control	Auto/Manual/Priority AE/Exposure Compensation/ Bright
Shutter Speed	1/1～1/10,000s
Gain	Auto/Manual
White Balance	Auto/ Indoor/Outdoor/Manual
Image Effect	Full color/black and white/Electronic flip
Video Output HD	HDMI, 3G/HD-SDI, USB2.0, IP(POE Optional)
Other Input	Line In
Control Protocol	SONY VISCA, PELCO P/D
Other Protocol	RTMP, RTSP, TCP/IP, HTTP, ONVIF, NDI®\|HX(Optional)
Control Mode	RS-232C, RS-422/485
Power	12V DC(10.8～13.0V DC)
Power Consumption	Max. 30W(DC 12V)
Operating Temperature	0~40℃
Storage Temperature	-20-60℃
Dimensions	(L)170 ×(W)150 ×(H)190mm
Weight	1550g
Color	Black
Accessories	DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDMI cable, USB cable, Ceiling bracket
Carton	Each camera in a small carton, then 4 pcs packaged in one large carton
Certificate	ISO/CE/FCC/RoHS
Warranty	3 years
