Get the crystal-clear image and ultra HD resolution of the Barco MDSC8427 4K Surgical... more

Close menu

Product information "27" - 4K Bundle"

Get the crystal-clear image and ultra HD resolution of the Barco MDSC8427 4K Surgical Monitor and an amazing sturdy trolley to match.

Savings of over £750!

Barco 27" 4K LED Surgcial Monitor with the Giraffe GIR6-1 AV trolley from the Medical Cart Company

About the Barco MDSC 8427:

27" 4K LED Display (3840x2160)
User Friendly
True to Life colours
Robust & Reliable

For more information click here

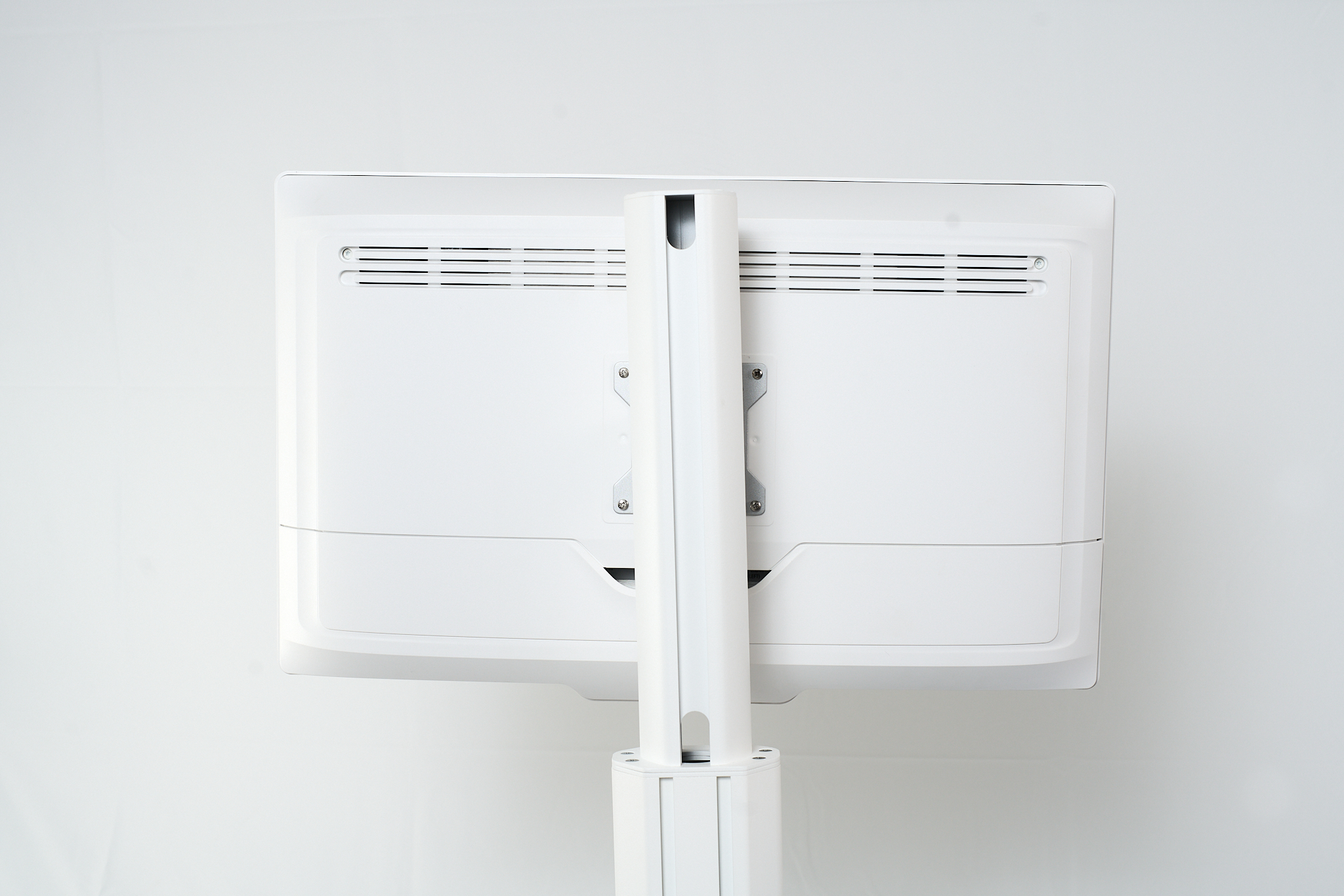

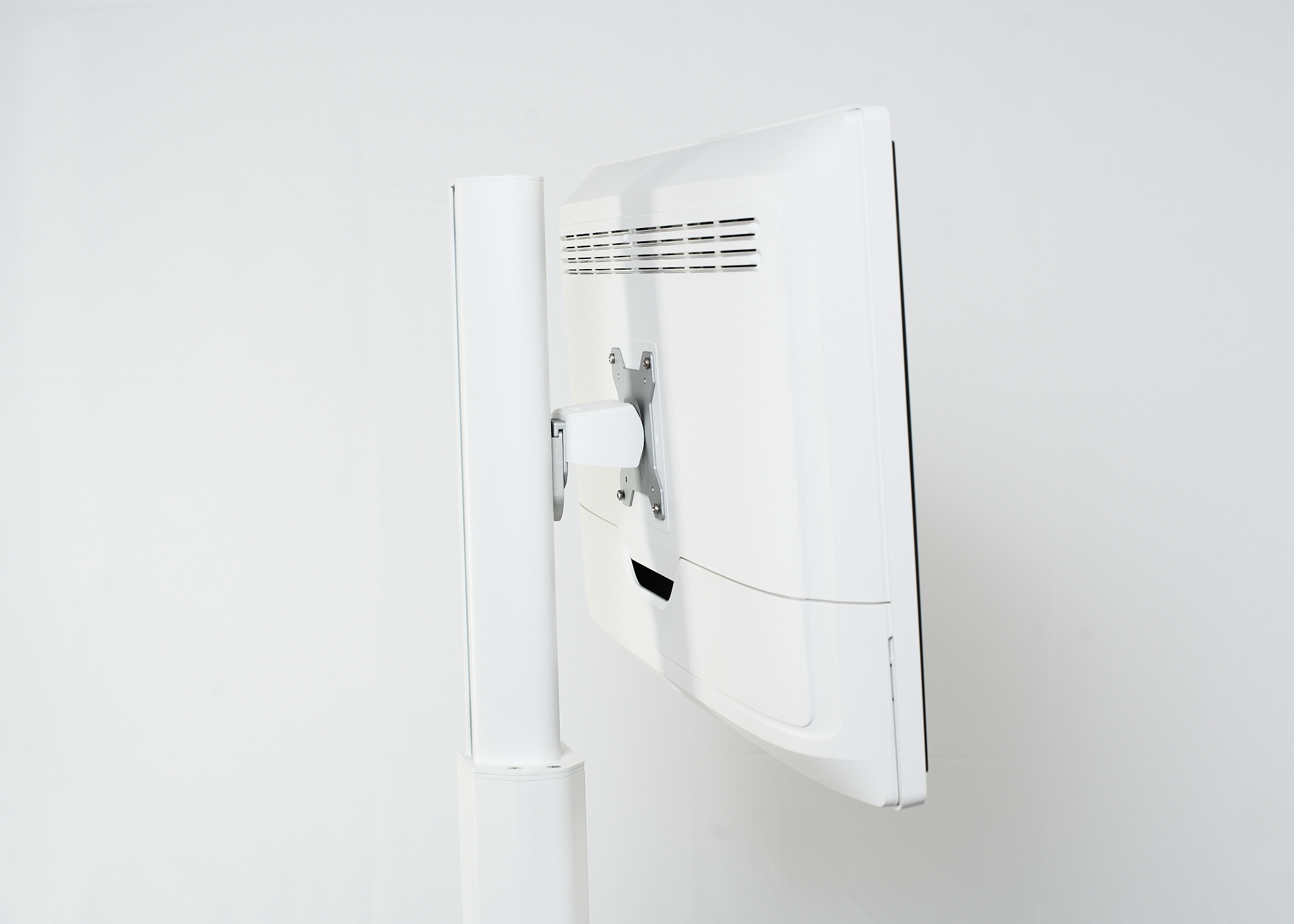

About the GIR6-1 Giraffe from the Medical Cart Company:

This versatile medical cart is supplied with a standard 75/100mm VESA screen mount and has a heavy duty base which allows a maximum load capacity of 25KG.

The lightweight central column has inbuilt channels to allow the easy addition of optional accessories.

Lightweight Aluminium construction
Easy to clean
Ergonomic
Easy to set up
Lockable wheels

For more information click here

Delivered next day for FREE in the UK

MECHANICAL INFORMATION (Cart)

Mechanical Information
Height	1100mm
Wheelbase	616mm diameter
Wheels/Locking	100mm diameter / 2 Locking
Maximum Load	25KG
Construction
Main Material	Aluminium
Colour	RAL9016 White
Certificates
Certificates conformed to	IEC60601-1:2012 (Edition 3)
CE	RoHS Compliant

DISPLAY

Screen technology	TFT AM LCD / IPS-PRO technology / LED backlight
Active screen size (diagonal)	27 inch (685 mm)
Active screen size (H x V)	597 x 336 mm
Aspect ratio (H:V)	16:9
Resolution	UHD (3840 x 2160)
Pixel pitch	0.155 mm
Color support	1 Billion (30 bit color depth)
Color gamut	Native = Wide color gamut (Adobe 92%) Calibrated color space: ITU-709, DCI-P3, BT.2020
Viewing angle (H, V)	178° Hor / 178° Ver
Luminance	Max: 750 cd/m² (typ.) @6500K : 550 cd/m2 stabilized (typ.)
Contrast ratio	1400:1 (Typical)
Response time	Ton + Toff = 20 msec (typ.)
White point	Calibrated: 5600K, 6500K, 7600K, 9300K
Gamma curve	Native, 1.8, Video, 2.2, 2.4, DICOM
Front protection screen	2-side AR glass with anti-fingerprint
Keyboard	Front Keyboard : 5-key touch Capacitive (User programmable) Rear Keyboard : 5-key membrane (Menu navigation)
Video inputs	MDSC-8427 LED 4K-UHD input : 4K-UHD input selectable among: 1x DP 1.1 up to 3840 x 2160 @30Hz 2x DP 1.1 up to 1920 x 2160 @50Hz/60Hz 1x DP 1.2 MST up to 3840 x 2160 @50Hz/60Hz 2x HDMI 2.0 up to 3840 x 2160 @50Hz/60Hz FHD input (upscaled to UHD) 1x DVI 1x 3G-SDI;
Video outputs	MDSC-8427 LED 1x 3G-SDI (3G-SDI input loop-through) 1x DVI (4K display screen clone - downscaled to FHD)
Features	Video processing optimized for low latency and noise reduction, Picture-in-Picture, Picture-by-Picture, Image Mirror and Rotation, Failover mode, Screen clone on DVI out, FHD input upscaled to UHD, Legacy signals accepted, Programmable functional keys, DC Power output, cable cover.
Remote control	Remote control of Monitor functions available on: USB type B port for FW download and remote control Remote control through DDC on DVI and DP
Power consumption	MDSC-8427 LED:Max 100W / 25V ± 10% Low power mode: MDSC-8427 LED: 18W Typ Power-off: ~ 1W
Power consumption	AC input: 100 – 240 VAC / 47-63 Hz auto-switch DC output: +25V / 8A
DC power output	(Power-to-dongle) DC connector: +5V / 2A Available also on DVI, DP and USB ports
Dimensions (W x H x D)	657 x 418 x 75 mm ( 25.9 x 16.5 x 3.0 in)
Dimensions (packaged)	860 x 560 x 180 mm (33.9 x 22.0 x 7.1”)
Net weight display	9.1 Kg / 20.7 lbs
Net weight packaged	13.2 kg / 29.1 lbs
Mounting standard	100x100 mm VESA
Operating temperature	0° - 40° for safety/ 5° - 35° recommended
Storage temperature	-20° -60°C
Operating humidity	20% – 85% R.H.
Storage humidity	10% – 85% R.H.
Compliance	ANSI/AAMI ES60601-1 (2005 + C1:09 + A2:10 + A1:2014 CAN/CSA-C22.2 No. 60601-1 (2014) IEC 60601-1:2005 (Third Edition) + CORR. 1:2006 + CORR. 2:2007 + A1:2012 EN 60601-1: 2006 + CORR:2010 + A1:2013 + A12:2014 Electromagnetic Compatibility: EMC Medical EMC Standards: IEC 60601-1-2 (2014), EN 60601-1-2 (2015) EN55011 /CISPR 11, FCC CFR47 Part 15 Subpart B (Class B) GB17625.1-2012; GB4943.1-2011; GB/T9254-2008 Approvals/Marking: CE, c-UL-us, DEMKO, CCC, INMETRO, BIS
Protection rating	IP21 (IP45 front side)
Warranty	3 years
Green compliance	ROHS-3, REACH, WEEE
