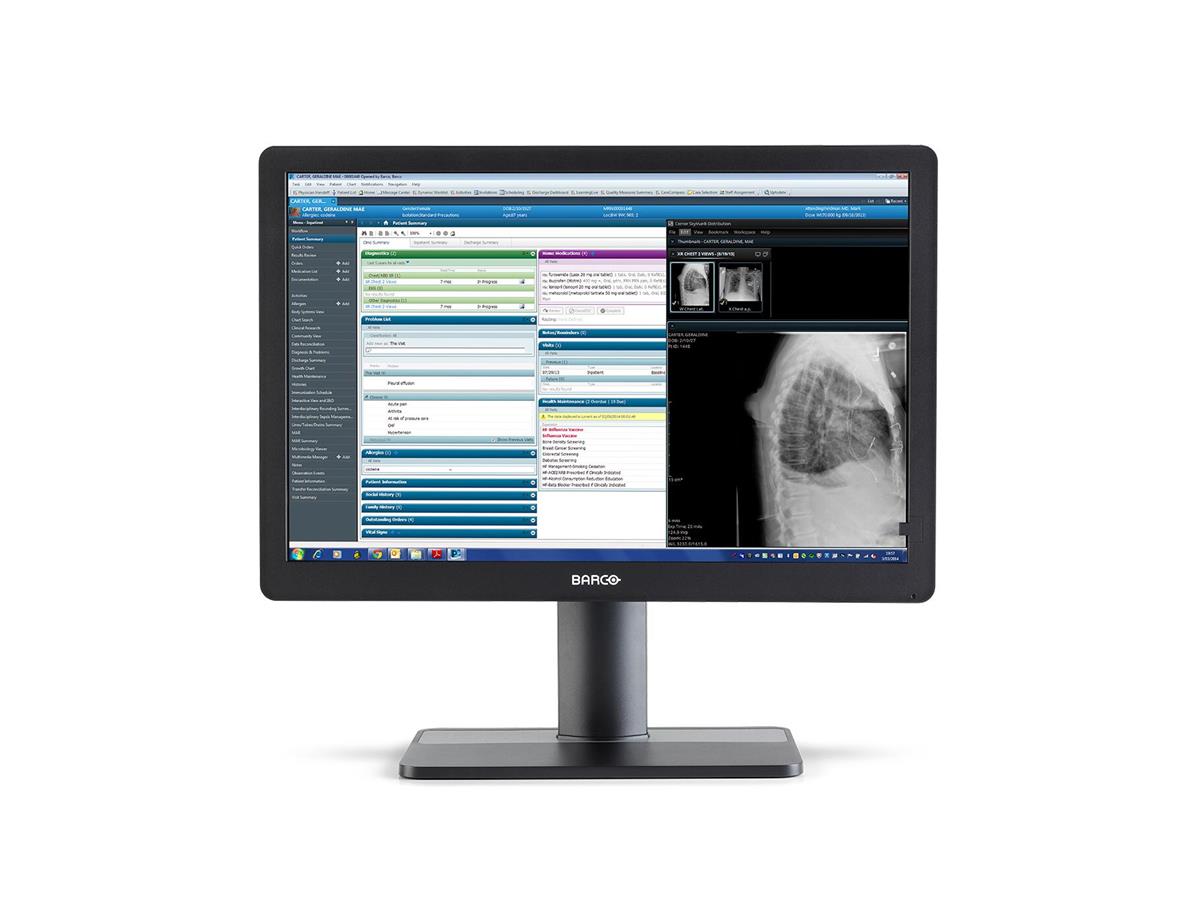

Barco Eonis 24" 2MP MDRC-2324 Clinical Review Monitor
![Preview: Barco Eonis 24" 2MP MDRC-2324 Clinical Review Monitor](https://www.surgicalmonitors.com/media/image/0b/19/4d/MDRC-2324-black-front-transp_preview-jpg1CnW4mTVBoFPt.jpg "Preview: Barco Eonis 24" 2MP MDRC-2324 Clinical Review Monitor")
![Preview: Barco Eonis 24" 2MP MDRC-2324 Clinical Review Monitor](https://www.surgicalmonitors.com/media/image/08/d3/08/Eonis-big-family-03-clinical-onwhite-MR-ext-jpgG89i6pTNtePto.jpg "Preview: Barco Eonis 24" 2MP MDRC-2324 Clinical Review Monitor")
- Order number: SW10330
24" clinical display for hospital-wide viewing of clinical data and images
- 24" display for reviewing clinical images
- With front sensor for consistent images
- With remote QA management tools
- Different versions available
This 24” Eonis display has been built with healthcare specialists in mind. It combines consistent, high image quality and an attractive, versatile design with networked quality assurance. It's available in black and white.
High image quality
The high-quality Eonis display presents sharp, bright images with high contrast and a wide viewing angle. Eonis uses the latest in advancements in LED backlight technology, ensuring a higher brightness that can be maintained over a longer period of time.
The display’s unique front consistency sensor ensures fast power-up and continuous luminance stability. The image consistency makes collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.
Centralized quality assurance
Eonis comes complete with Barco’s cloud-based QAWeb Enterprise software, an online service for automated calibration, Quality Assurance and asset management. Praised in hospitals around the world, QAWeb Enterprise allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.
Smart design, fit for purpose
Barco’s Eonis display is safe to use in a clinical environment. The multiple mounting options and connections add to the smart design. The display is as high in brightness as it is low in power consumption. The lightweight form factor and packaging help reduce the environmental footprint of this product.
Models
- MDRC-2324 (Option SNIB): standard brightness, no touchscreen or cover, internal power supply, black
- MDRC-2324 (Option HPEW): high brightness, protective & anti-reflective glass, external power supply, white
| Screen technology | LCD |
|---|---|
| Active screen size (diagonal) | 609.6 mm (24") |
| Active screen size (H x V) | 518.4 mm x 324.0 mm (20.4 x 12.8") |
| Aspect ratio (H:V) | 16:10 |
| Resolution | 2MP (1920 x 1200 pixels) |
| Pixel pitch | 0.270 mm |
| Color imaging | Yes |
| Gray imaging | Yes |
| Bit depth | 30 bit |
| Viewing angle (H, V) | 178° |
| Ambient light presets | Yes, reading room selection |
| Front sensor | Yes, Front Consistency Sensor |
| Maximum luminance | Standard brightness versions (MDRC-2324 (option Sxxx)): 430 cd/m² High brightness versions (MDRC-2324 (option Hxxx)): 600 cd/m² |
| DICOM calibrated luminance | Standard brightness versions (MDRC-2324 (option Sxxx)): 250 cd/m² High brightness versions (MDRC-2324 (option Hxxx)): 350 cd/m² |
| Contrast ratio (panel typical) | 1000:1 |
| Response time ((Tr + Tf)/2) (typical) | 7 ms |
| Housing color | Black versions (MDRC-2324 (option xxxB)): RAL 9004 White versions (MDRC-2324 (option xxxW)): RAL 9003 |
| Video input signals | 1 x DP, 1 x DVI-I |
| USB ports | 1x USB 2.0 upstream (endpoint) 2x USB 2.0 downstream |
| Power rating | Black versions (MDRC-2324 (option xxxB)): 100-240 VAC, 50/60 Hz, 0.7-0.4A White versions (MDRC-2324 (option xxxW)): 12 VDC, 2.3A |
| Power requirements | White versions (MDRC-2324 (option xxxW)): This device shall only be powered by the following medical approved power supply: Adaptertec, type PCL722A Ratings marked on the medical power supply:
|
| Power consumption | Standard brightness versions (MDRC-2324 option Sxxx): 20 W High brightness versions (MDRC-2324 option Hxxx): 25 W < 0.5 W (hibernate) < 0.5 W (standby) |
| Dimensions with stand (W x H x D) | Portrait: 383.0 x 577.1~629.1 x 201.3 mm Landscape: 568.0 x 420.6~530.6 x 201.3 mm |
| Dimensions w/o stand (W x H x D) | Portrait: 383.0 x 568.0 x 67.3 mm Landscape: 568.0 x 383.0 x 67.3 mm |
| Dimensions packaged (W x H x D) | 760 x 513 x 235 mm |
| Net weight with stand | MDRC-2324 (option SNIB): 6.8 kg MDRC-2324 (option HPEW): 7.6 kg |
| Net weight w/o stand | MDRC-2324 (option SNIB): 4.6 kg MDRC-2324 (option HPEW): 5.4 kg |
| Net weight packaged | MDRC-2324 (option SNIB): 8.8 kg (including optional accessories) MDRC-2324 (option HPEW): 9.9 kg (including optional accessories) |
| Tilt | -5° to +22° |
| Pivot | 0° to 90° |
| Height adjustment range | 110 mm |
| Mounting standard | VESA (100 mm) |
| Screen protection | MDRC-2324 (option HPEW): Protective, anti-reflective glass MDRC-2324 (option SNIB): None |
| Recommended modalities | All digital images, except digital mammography. |
| Certifications | FDA Class I, 510(k) exempt CE (Medical Device Class I) CCC (China), KC (Korea), BIS (India), EAC (Russia) Safety specific: IEC 60950-1:2005 + A1:2009 + A2:2013 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + CORR. 1:2006 + CORR. 2:2007 + AM1:2012 EN 60601-1:2006 + A1:2013 + A12:2014 ANSI/AAMI ES 60601-1:2005 + R1:2012 CAN/CSA C22.2 No. 60601-1:2014 EMI specific: IEC 60601-1-2: 2014 (ed4) EN 60601-1-2:2015 (ed4) FCC part 15 Class B ICES-003 Level B VCCI (Japan) Environmental: China Energy Label, EU RoHS, China RoHS, REACH, Canada Health, WEEE, Packaging Directive |
| Supplied accessories | 1x DisplayPort video cable 1x USB cable 1x printed User Guide (in English, other languages can be found on the documentation disc) 1x documentation disc 1x system sheet 1x external power supply for MDRC-2324 versions (xxEx) only Mains cables |
| Optional accessories | None |
| QA software | QAWeb |
| Warranty | 3 years |
| Operating temperature | 0 °C to 40 °C (15 °C to 35 °C within specs) |
| Storage temperature | -20 °C to 60 °C |
| Operating humidity | 8% to 80% (non-condensing) |
| Storage humidity | 5% to 90% (non-condensing) |
| Operating pressure | 70 kPa minimum |
| Storage pressure | 50 to 106 kPa |
