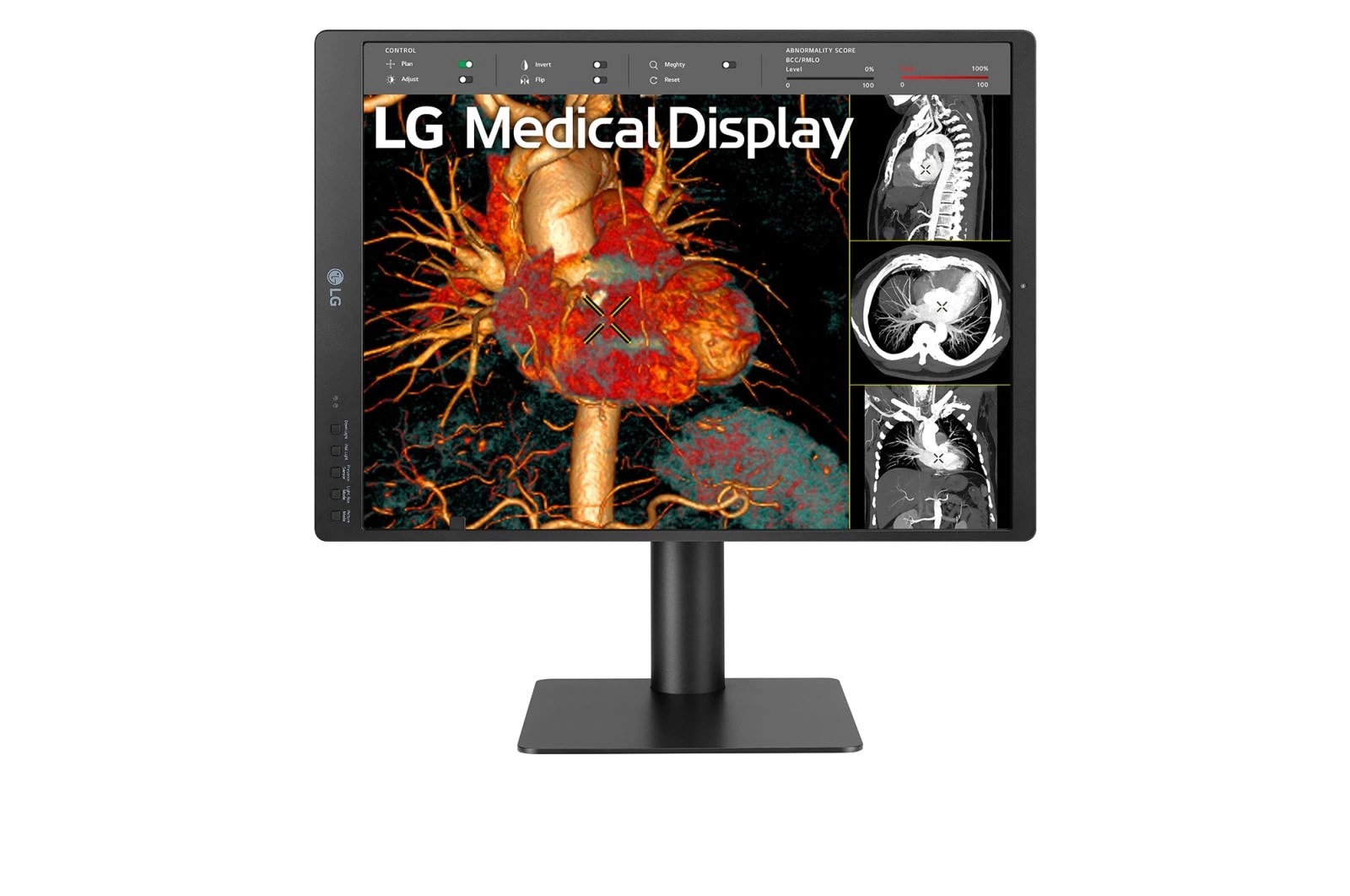

LG 21HQ513D 21.3'' 3MP IPS Diagnostic Monitor
- Order number: SW10320
21HQ513D-B LG 21.3'' 3MP IPS Diagnostic Monitor 21.3-inch 3MP IPS Display 1100 cd/m²... more
Product information "LG 21HQ513D 21.3'' 3MP IPS Diagnostic Monitor"
21HQ513D-B
LG 21.3'' 3MP IPS Diagnostic Monitor
- 21.3-inch 3MP IPS Display
- 1100 cd/m² (Typ.)
- Pathology Mode, Focus View Mode
- Lighting (Down/Wall Lighting)
- Ergonomic Design
Manage Effortless Quality Control
The Integrated Front Sensor allows easy calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.
Compatible with Various Device
Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 21HQ513D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.
True-to-Life Color Reproduction
In Pathology Mode, the 21HQ513D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.
Hassle-free Savings & Stronger Security
Thanks to the Presence Sensor of 21HQ513D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.
Fully Focus on the Region of Interest
LG 21HQ513D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the region of interest of the image for a more accurate and efficient diagnosis
Reducing Eye Strain
LG 21HQ513D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.
Reducing Clutter on Your Desk and Simplifying Cable Management

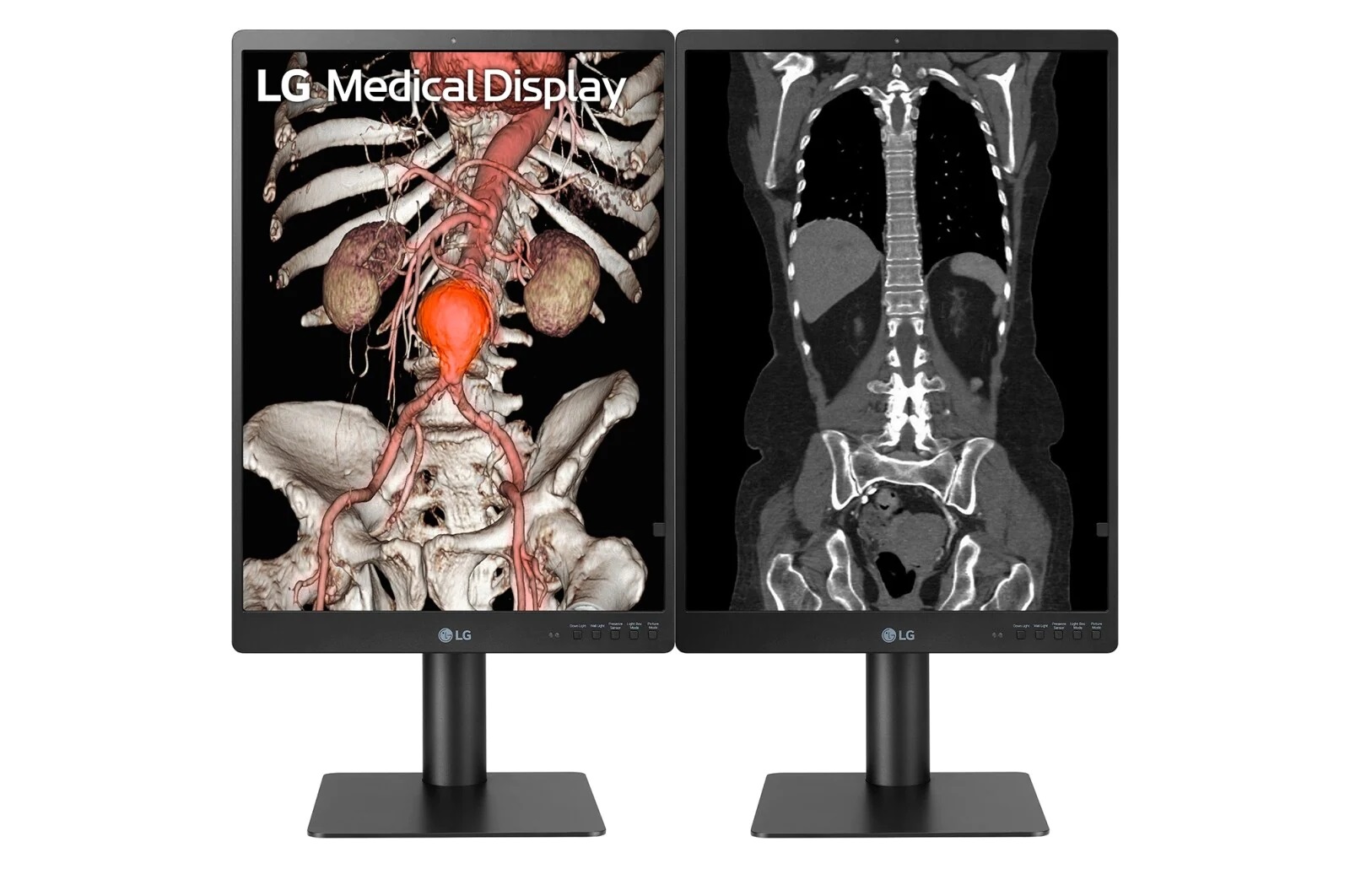

The 21HQ513D with 2 USB 3.0 Upstream Port and DisplayPort support Daisy Chain Setup. So you can establish a productive workstation by connecting two diagnostic Monitors and a PC.
Easy and Comfortable Workspace
The 21HQ513D is designed to be adjustable for the posture of healthcare professionals' image review. So, It helps review medical images more comfortable reducing chronic pain caused by long hours of work.
Related links to "LG 21HQ513D 21.3'' 3MP IPS Diagnostic Monitor"
DISPLAY Aspect Ratio 3:4 Brightness (Typ.) 1100cd/m² Color... more
Specifications "LG 21HQ513D 21.3'' 3MP IPS Diagnostic Monitor"
DISPLAY
| Aspect Ratio | 3:4 |
| Brightness (Typ.) | 1100cd/m² |
| Color Bit | 10bit |
| Color Gamut (Typ.) | NTSC 72% |
| Contrast Ratio (Typ.) | 1800:1 |
| Panel Type | IPS |
| Pixel Pitch(H x V) | 0.2115 x 0.2115 mm |
| Resolution | 1536x2048 |
| Response Time (GTG) | 5ms (GtG at Faster) |
| Size (Diagonal, Inch) | 21.3 |
| Size (H x V) | 324.86 x 433.15mm (12.79 x 17.05") |
| Surface Treatment | Anti-glare, 3H |
| Viewing Angle (CR≥10) | 178°(Right/Left), 178°(Up/Down) |
Feature
| Hot Key | Yes(5keys) |
| Brightness stabilization | Yes |
| Auto Luminance Sensor | Yes |
| Presence Sensor | Yes |
| Front Sensor | Yes |
| Black Stabilizer | Yes |
| HW Calibration | Yes(PerfectLum) |
| DICOM Compliant | Yes |
| Color Temperature | 6500K / 7500K / 9300K / Manual (5000K ~ 10000K) |
| Flicker safe | Yes |
| Mtableti-resolution Mode | Yes(3MP/2MP) |
| Pathology Mode | Yes |
| Reader Mode | Yes(Text Mode) |
| Focus View | Yes |
| Light Box Mode | Yes |
| Smart Energy Saving | Yes |

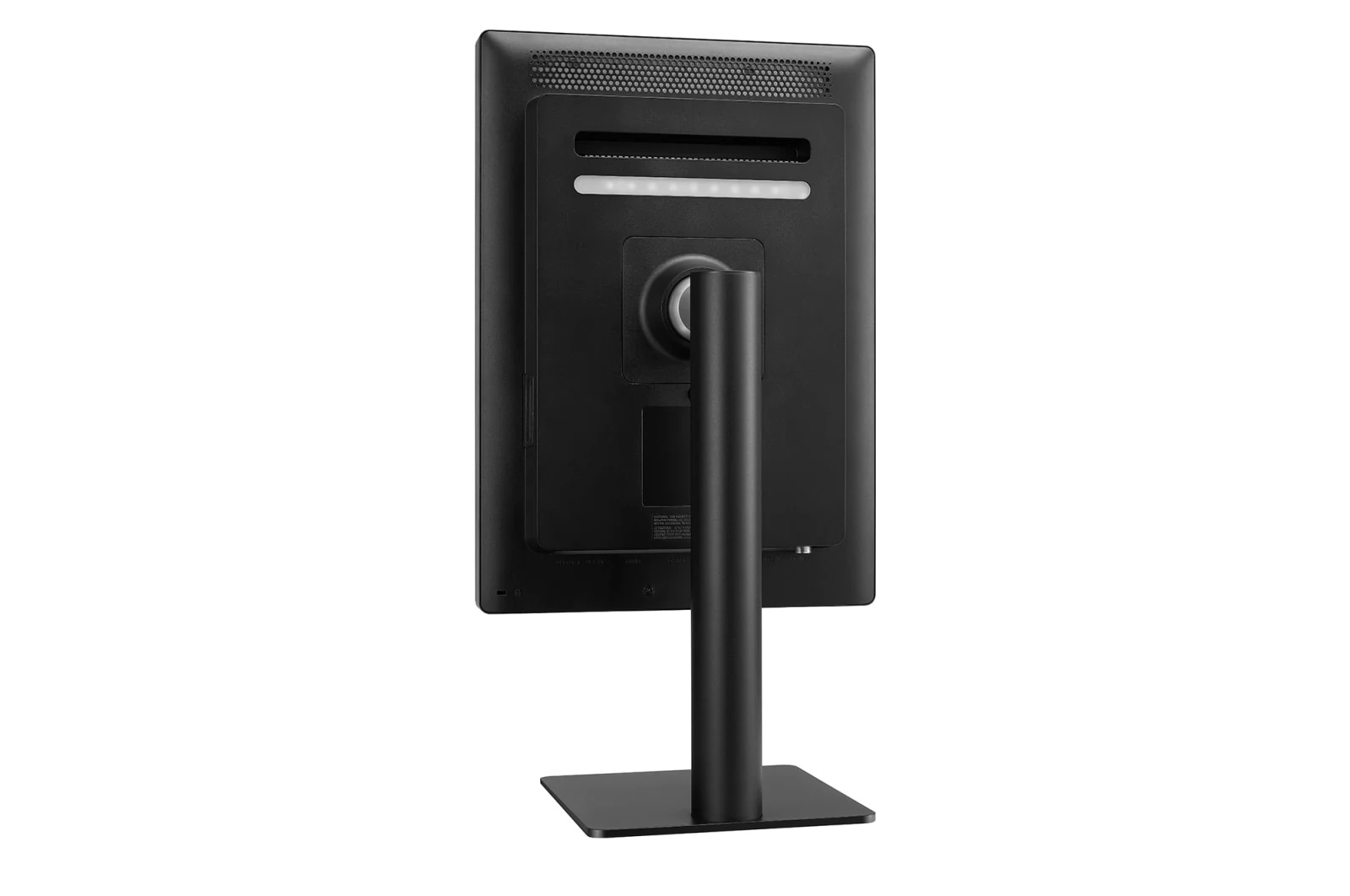

| Lighting | Yes(Down/ Wall) |
| Super Resolution+ | Yes |
SW Application
| Dual Controller | Yes |
| Qubyx | Yes |

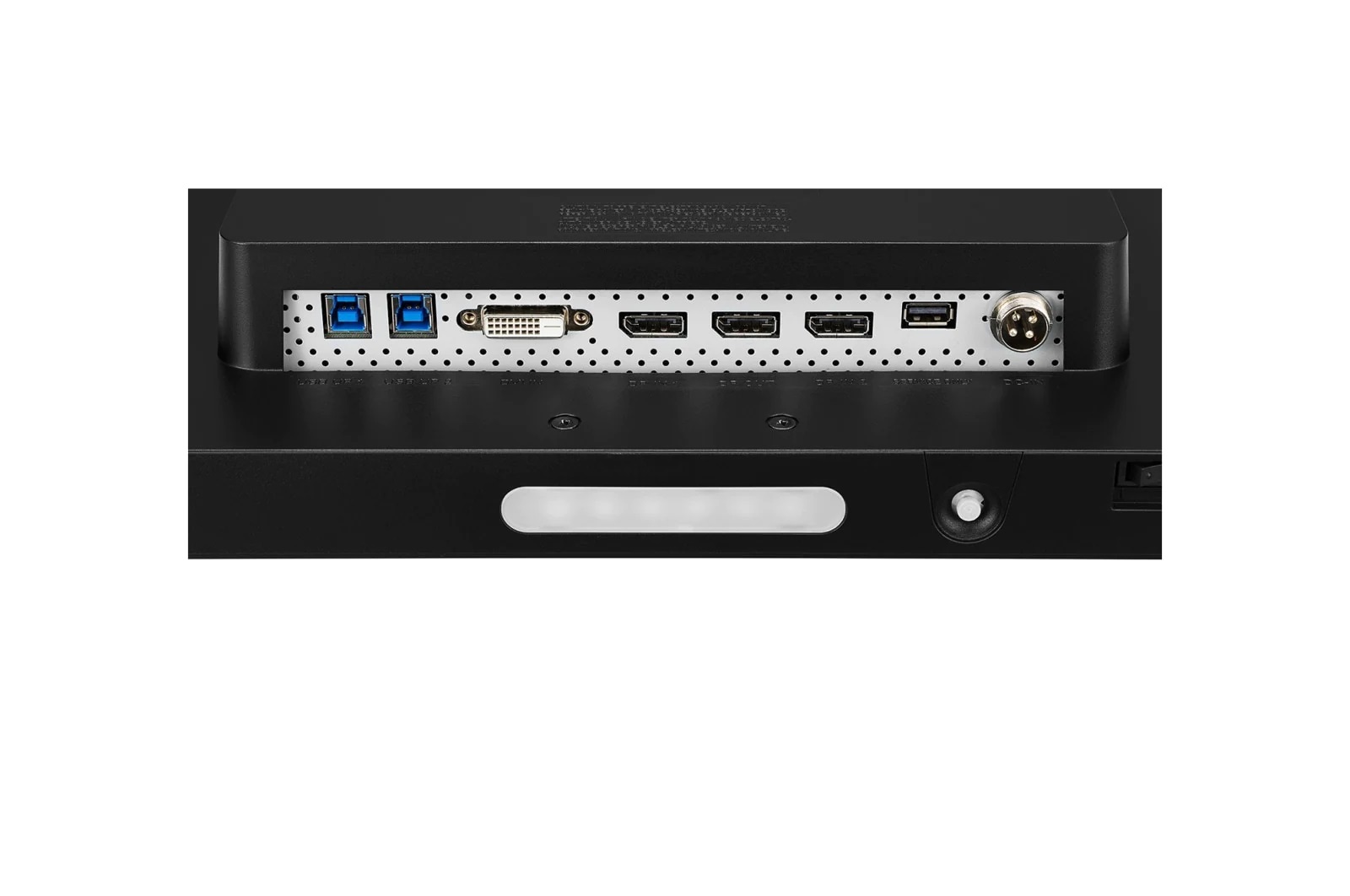

Connectivity
| DisplayPort | YES(In 2ea / Out 1ea) |
| DVI | Yes (1ea) |
| Daisy Chain | Yes(3MP/60Hz) |
| USB Downstream Port | Yes(2ea/ver3.0) |
| USB Upstream Port | Yes(2ea/ver3.0) |
Power
| AC Input | 100-240Vac, 50/60Hz |
| DC Output | 19V, 6.32A |
| Power Consumption (DC Off) | Less than 0.3W |
| Power Consumption (Max.) | 120W |
| Type | External Power(Adapter) |
Mechanical
| Borderless Design | Normal |

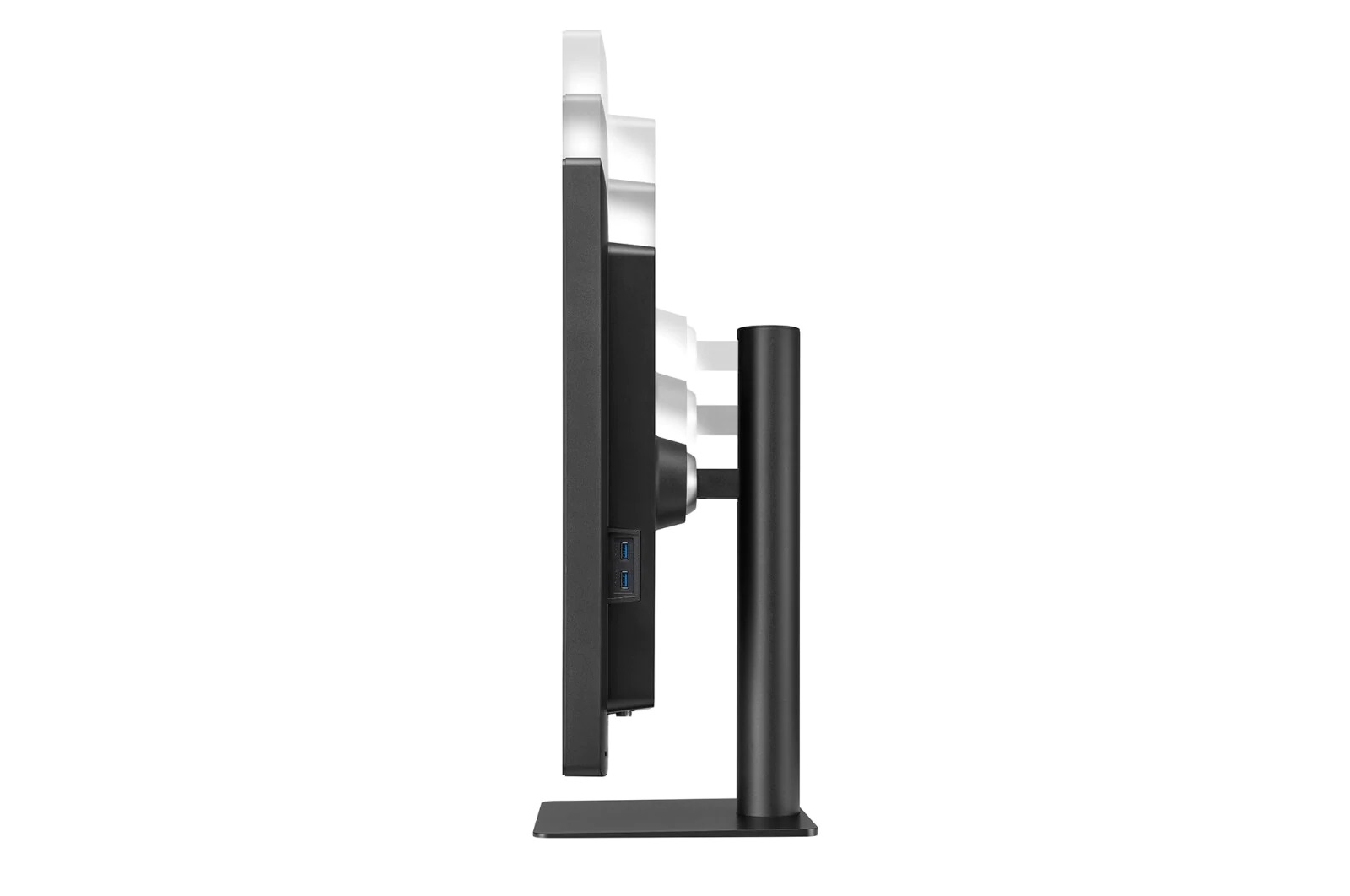

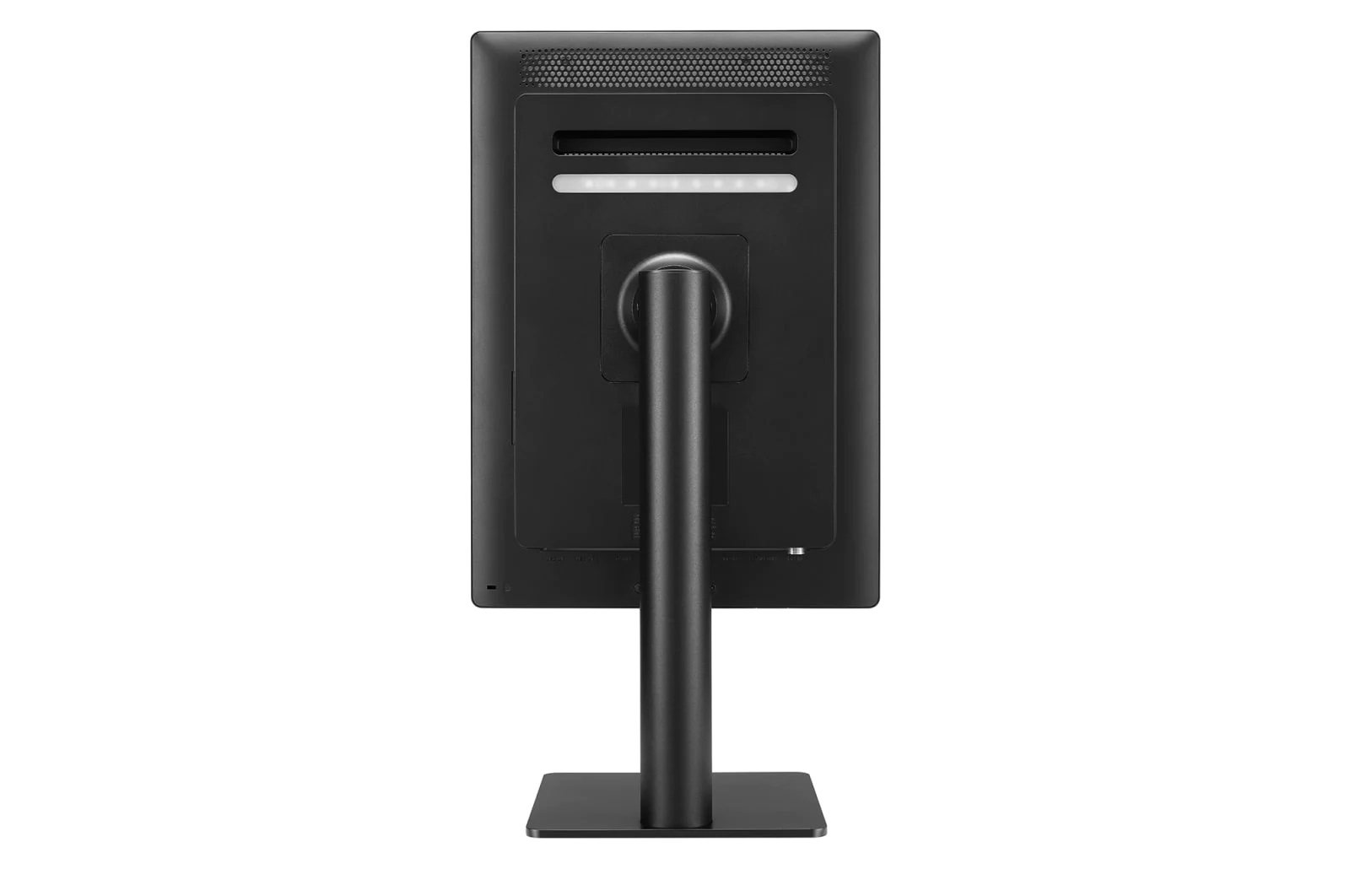

| Display Position Adjustments | Tilt/Height/Pivot |
| Height Range | 110mm |
| Machanical Power Switch | Yes |
| OneClick Stand | Yes |
| Pivot | Yes(±90°) |
| Tilt | Yes (-5°~20˚) |
| Wall Mount Size | 100 x 100 mm |
Dimensions/Weight
| Dimension in Shiping (W x H x D) | 636x551x163 |
| Dimension with Stand (W x H x D) | 343.1x640x234.6 |
| Dimension without Stand (W x H x D) | 343.1x484x72.4 |
| Pallet Stuffing (20ft/40ft/40ft HC) | 396/864/936 |
| Weight in Shipping | 9.5Kg |
| Weight with Stand | 7.0kg |
| Weight without Stand | 5.0kg |
Accessory
| Adapter | Yes |
| Calibration Report (Paper) | Yes |
| DVI-D | Yes |
| Display Port | Yes |
| Power Cord | Yes |
| USB3.0 Upstream Cable | Yes |
