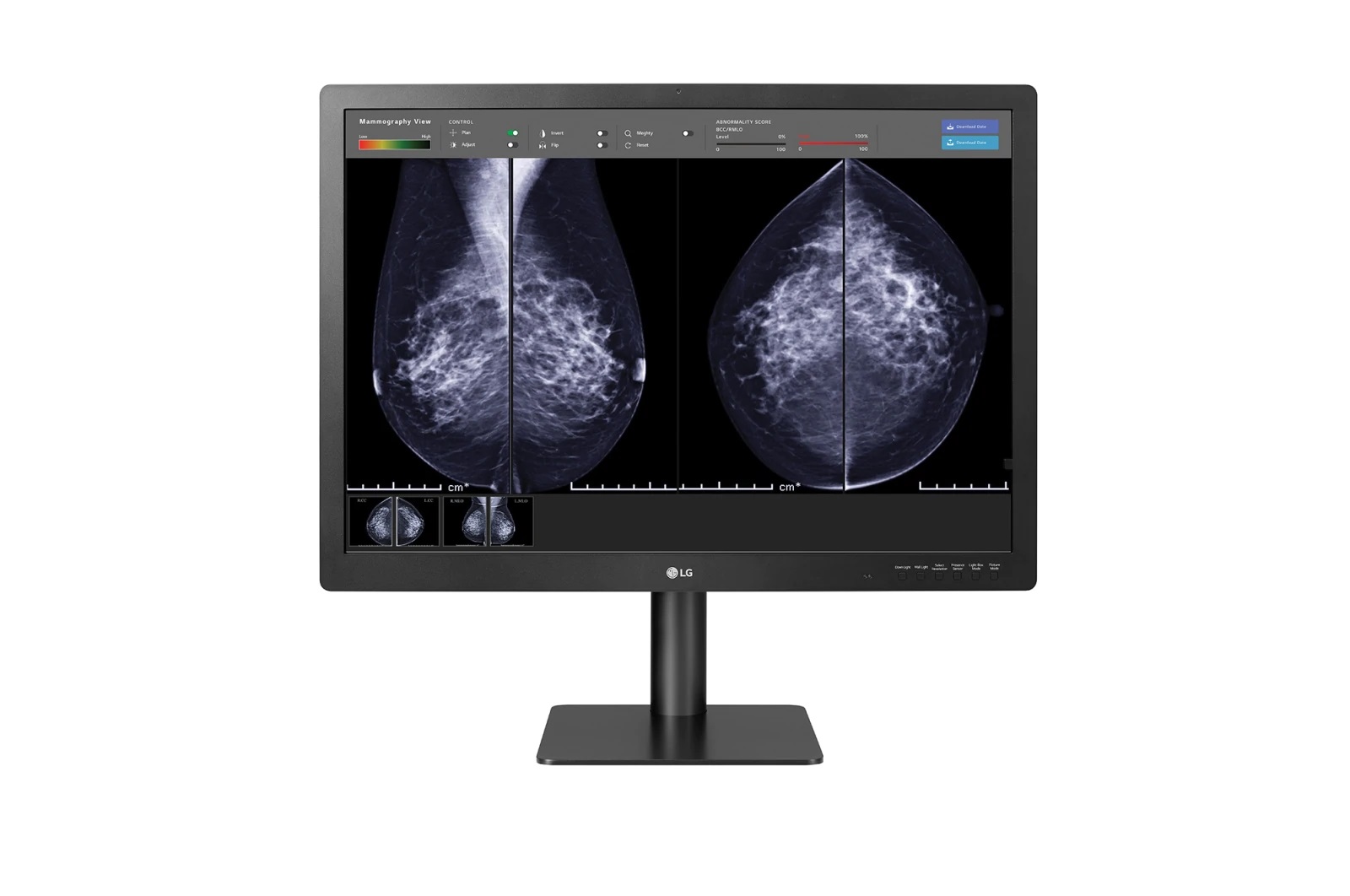

LG 31HN713D 31'' 12MP IPS Diagnostic Monitor for Mammography
- Order number: SW10322
31HN713D LG 31'' 12MP IPS Diagnostic Monitor for Mammography 31-inch 12MP (4200x2800)... more
Product information "LG 31HN713D 31'' 12MP IPS Diagnostic Monitor for Mammography"
31HN713D
LG 31'' 12MP IPS Diagnostic Monitor for Mammography
- 31-inch 12MP (4200x2800) IPS Display
- Multi-resolution Mode (12/6MP)
- 1080 cd/㎡ (Typ.)
- Pathology Mode, Focus View Mode
- Lighting (Down/Wall Lighting)
Compatible with Every Device

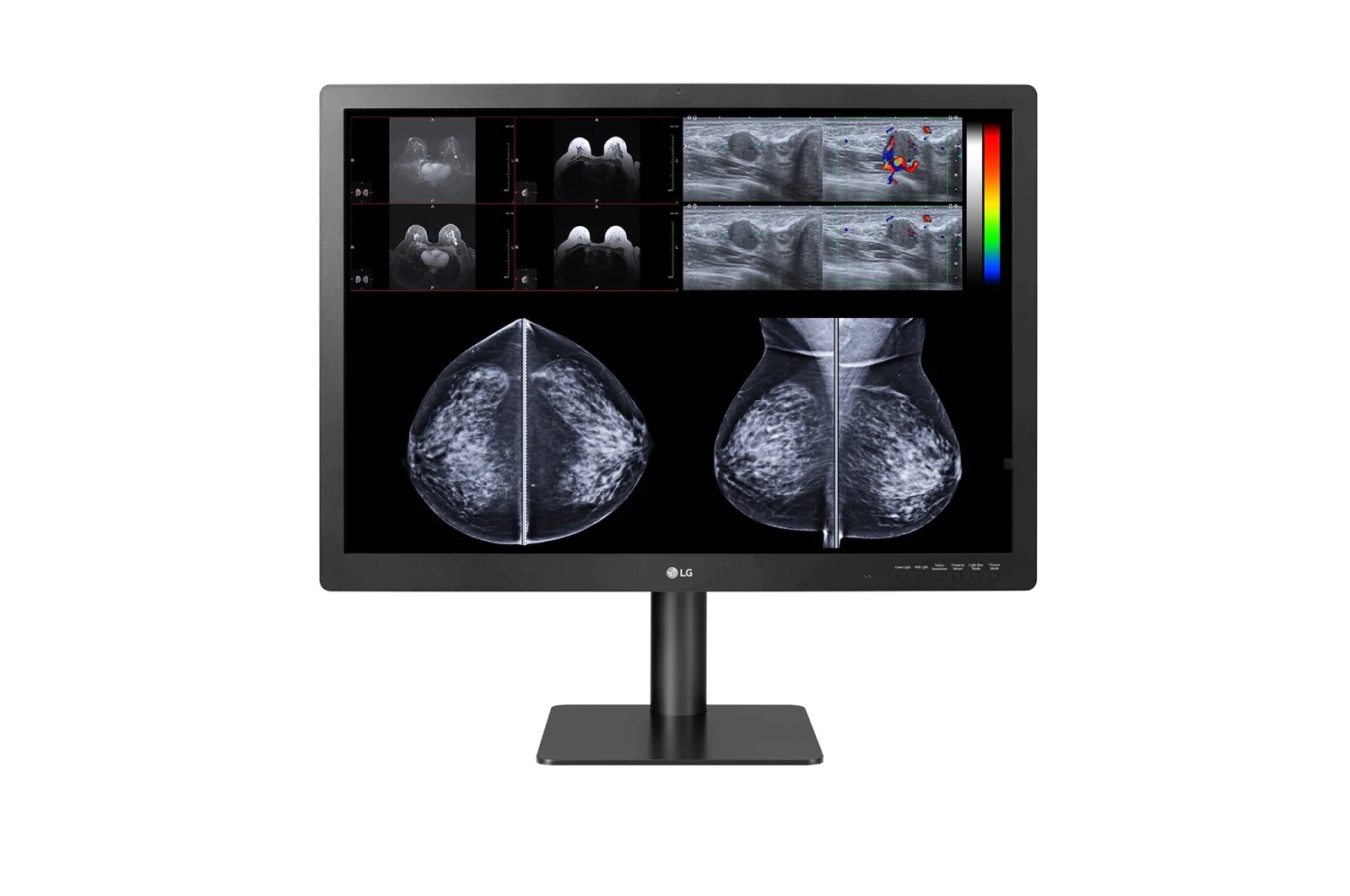

Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 31HN73D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.
True-to-Life Color Reproduction
In Pathology Mode, the 31HN713D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.
Consistency in Medical Images
The front-sensor allows for automatic, self-calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.
Hassle-free Savings & Stronger Security
Thanks to the Presence Sensor of 31HN713D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.
Reducing Eye Strain
LG 31HN713D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.
Fully Focus on the Important part
LG 31HN713D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the important part of the image for a more accurate and efficient diagnosis.
Optimal Reading Condition
Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.
Intuitive Control
The 31HN713D's 6 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 6 Hot Keys are much faster and easier to operate while working, allowing you to change mode, screen resolution, and lighting settings all without disrupting your workflow.
Easy and Comfort

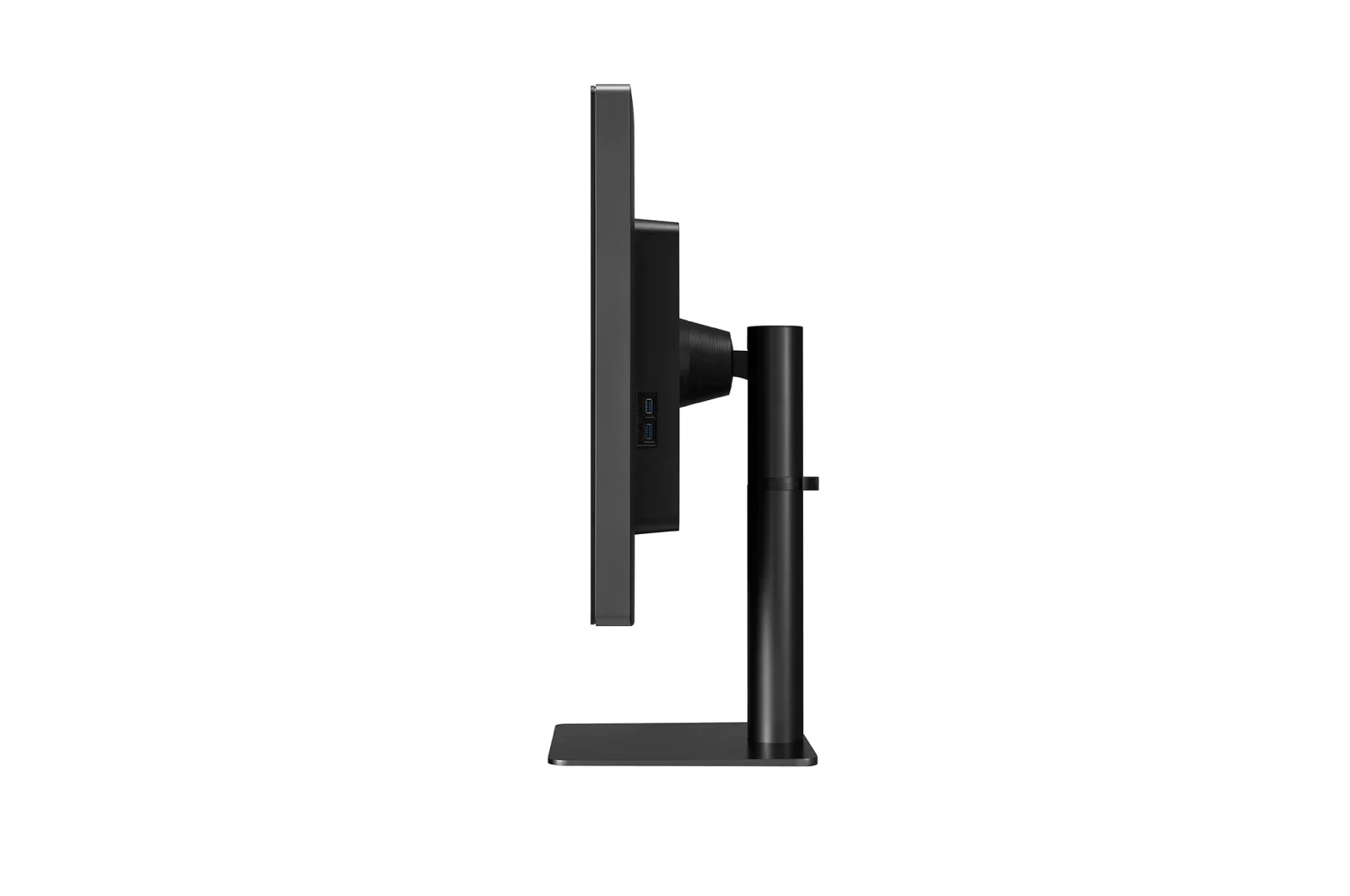

The One-Click Stand and ultra-lightweight body make installing the 31HN713D simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel, reducing chronic pain caused by long hours of work.
Related links to "LG 31HN713D 31'' 12MP IPS Diagnostic Monitor for Mammography"
DISPLAY Aspect Ratio 3:2 Brightness (Typ.) 1080cd/m² (Uniformity On)... more
Specifications "LG 31HN713D 31'' 12MP IPS Diagnostic Monitor for Mammography"
DISPLAY
| Aspect Ratio | 3:2 |
| Brightness (Typ.) | 1080cd/m² (Uniformity On) |
| Color Bit | 10bit |
| Color Gamut (Typ.) | sRGB over 97%(Coverage) |
| Contrast Ratio (Typ.) | 1500:1 |
| Panel Type | IPS |
| Resolution | 4200x2800 |
| Response Time (GTG) | 14ms(Off-setting), 5ms(Faster-setting) |
| Size (Inch) | 31 |
| Surface Treatment | Anti-glare, 3H |
| Viewing Angle (CR≥10) | 178°(Right/Left), 178°(Up/Down) |
Feature
| Hot Key | Yes(6keys) |
| Brightness stabilization | Yes |
| Auto Luminance Sensor | Yes |
| Presence Sensor | Yes |
| Front Sensor | Yes |
| Black Stabilizer | Yes |
| HW Calibration | Yes(PerfectLum) |
| DICOM Compliant | Yes |
| Color Temperature | 6500K / 7500K / 9300K Manual (5000K ~ 10000K) |
| Flicker safe | Yes |
| PBP | Yes (2PBP) |
| Mtableti-resolution Mode | Yes(12MP/6MP) |
| Pathology Mode | Yes |
| Reader Mode | Yes(Text Mode) |
| Focus View | Yes |
| Light Box Mode | Yes |
| Smart Energy Saving | Yes |
| Lighting | Yes(Down/ Wall) |
| Super Resolution+ | Yes |
SW Application
| Dual Controller | Yes |
| Qubyx | Yes |

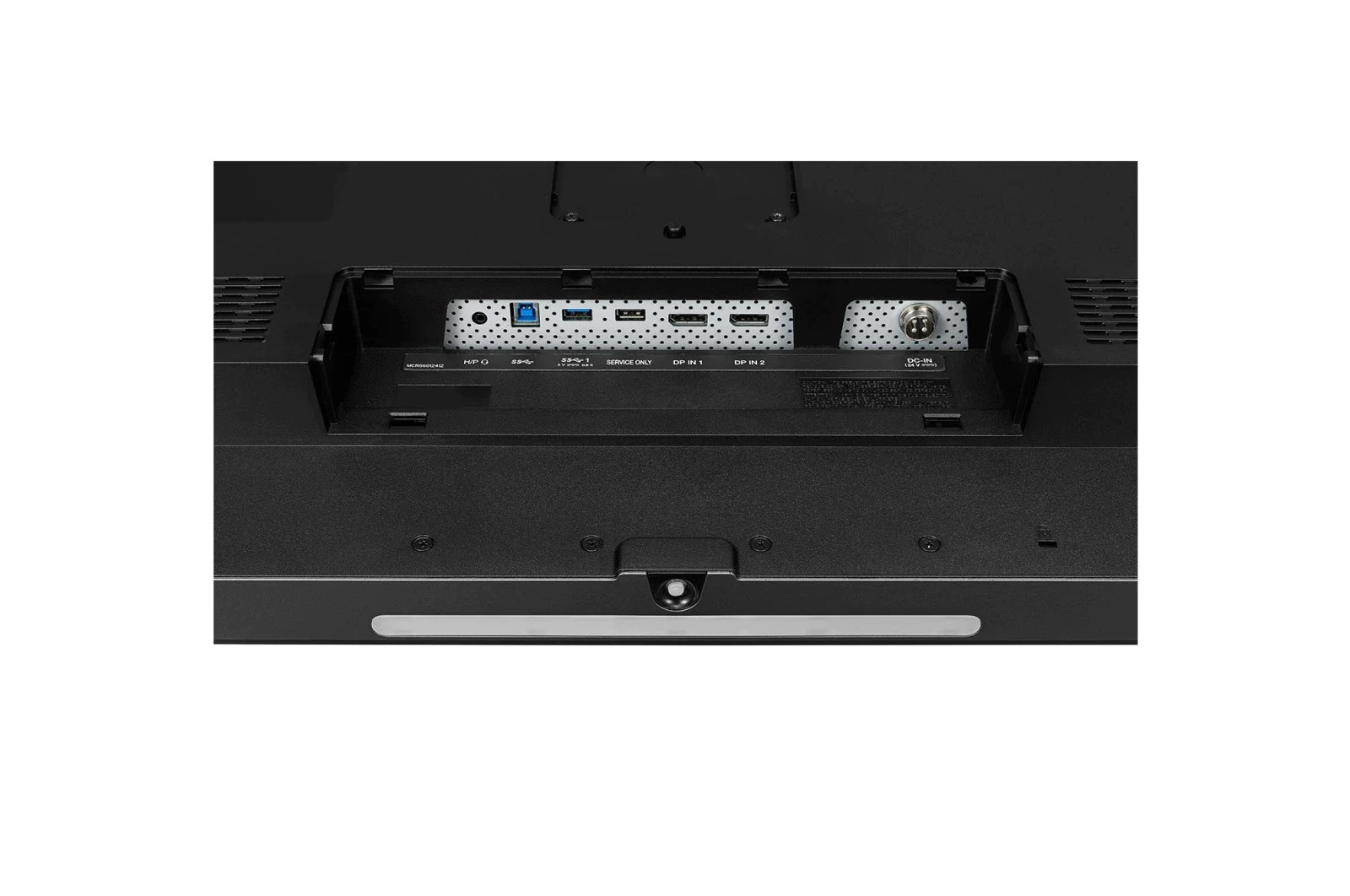

Connectivity
| DisplayPort | Yes (2ea) |
| Headphone out | Yes |
| USB Downstream Port | Yes(3ea/ver3.0) |
| USB Upstream Port | Yes(1ea/ver3.0) |
Power
| AC Input | 100-240Vac, 50/60Hz |
| DC Output | 24V , 7.5A |
| Power Consumption (DC Off) | Less than 0.3W |
| Power Consumption (Max.) | 180W |
| Type | External Power(Adapter) |
Mechanical
| Borderless Design | Normal |
| Display Position Adjustments | Tilt/Height/Swivel |
| Down Height | 90.9mm |
| Height Range | 110mm |
| Machanical Power Switch | Yes |
| OneClick Stand | Yes |
| Swivel | Yes(±15°) |
| Tilt | Yes(-5°~15˚) |
| Wall Mount Size | 100x100mm |
Dimensions/Weight
| Dimension in Shiping (W x H x D) | 978x628x277mm |
| Dimension with Stand (W x H x D) | 704.7x662.6x280mm |
| Dimension without Stand (W x H x D) | 704.7x499.5x83.2mm |
| Pallet Stuffing (20ft/40ft/40ft HC) | 126/294/336 |
| Weight in Shipping | 21.5kg(TBD) |
| Weight with Stand | 14.0kg(30.9lb) |
| Weight without Stand | 10.7kg(23.6lb) |
Accessory
| Adapter | Yes |
| Calibration Report (Paper) | Yes |
| Display Port | Yes |
| Power Cord | Yes |
| USB3.0 Upstream Cable | Yes |
