Preview: LG 32HL710S 31.5" 3G-SDI - 4K Surgical Monitor

LG 32HL710S 31.5" 3G-SDI - 4K Surgical Monitor

Price on request. Please sign up here first.

Free of shipping costs!

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: SW10288

32HL710S-W LG 31.5'' 4K IPS Surgical Monitor 31.5" 4K (3840x2160) IPS Support HDR10... more

Close menu

Product information "LG 32HL710S 31.5" 3G-SDI - 4K Surgical Monitor"

32HL710S-W

LG 31.5'' 4K IPS Surgical Monitor

31.5" 4K (3840x2160) IPS
Support HDR10
Mirror & Rotation Mode
Up to 4PBP, PIP
Dustproof, Water Resistant
Protection Glass

Large Display for Surgical Precision

LG 4K surgical high-resolution monitor with LG’s innovative technology provides accuracy, user convenience and reliability for precise surgery.

Enhanced Accuracy with Wide View

With 31.5-inch 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.

sRGB 115% (Area), Over 99% (Coverage)

The 32HL710S, supports sRGB 115% (Area) and Over 99% (Coverage) with the standard DICOM Part 14, is designed for accurate color recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.

Brightness Stabilization

LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure

Support HDR10

LG surgical monitor is designed to fits with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.

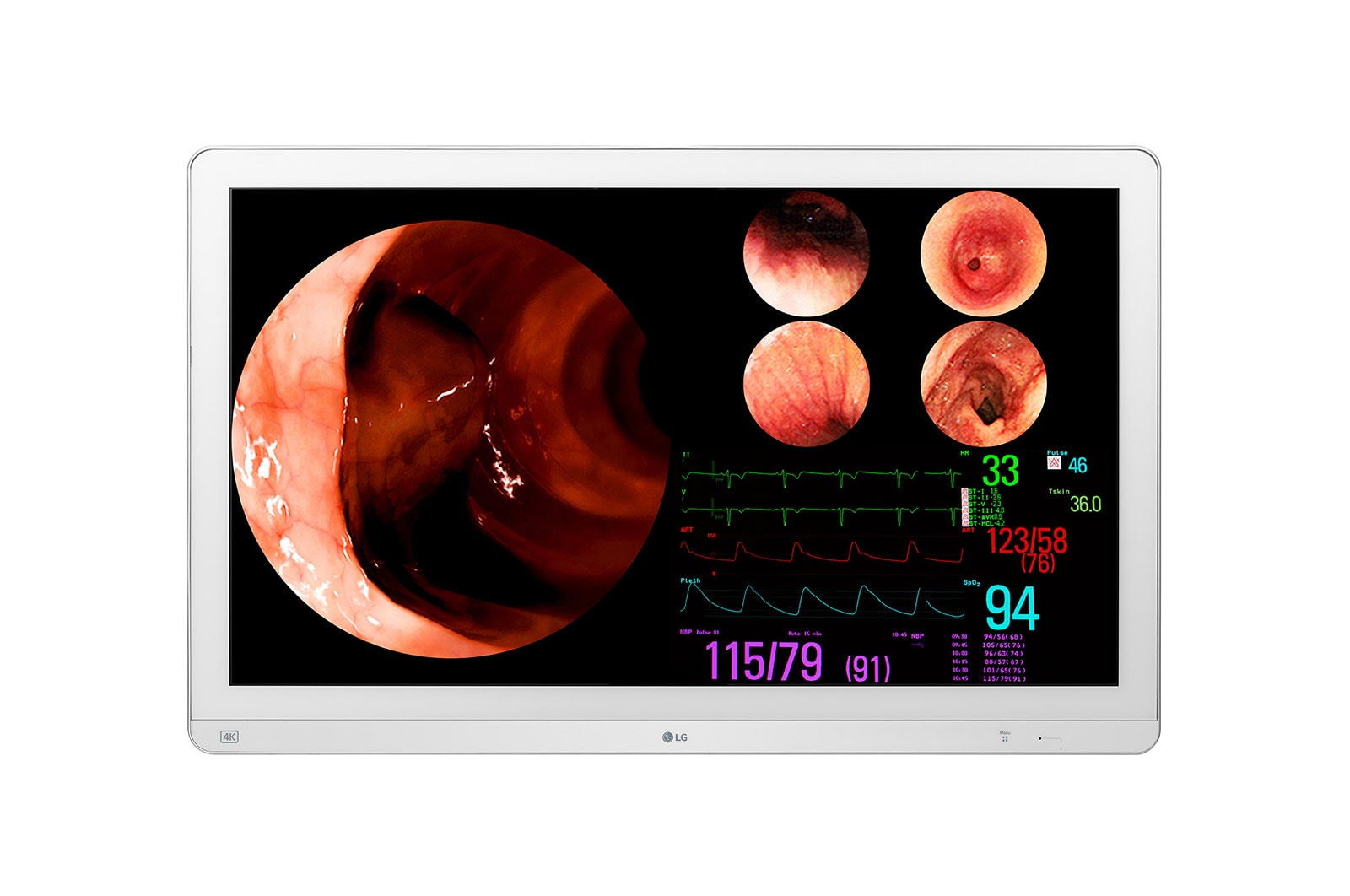

Multiple Signals on One Screen
PBP, PIP & Multi-input

The 32HL710S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.

Find the Perfect Operating View

The 32HL710S with Mirror & Rotate functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.

Dustproof & Water Resistant

To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.

Related links to "LG 32HL710S 31.5" 3G-SDI - 4K Surgical Monitor"

DISPLAY Aspect Ratio 16:9 Backlight Dimming Technology Global... more

Close menu

Specifications "LG 32HL710S 31.5" 3G-SDI - 4K Surgical Monitor"

DISPLAY

Aspect Ratio	16:9
Backlight Dimming Technology	Global Dimming
Backlight Technology	LED
Backlight Type	Edge
Brightness (Min.)	650cd/m²
Brightness (Typ.)	800cd/m²
Brightness (Stabilization)	500cd/m²
Colour Bit	10bit
Colour Depth (Number of Colours)	1.07B
Colour Gamut (Typ.)	sRGB 115% (Area), sRGB over 99% (Coverage)
Contrast Ratio (Typ.)	1300:1
Contrast Ratio with DFC	Mega
Panel Type	IPS
Peak Brightness (Min.)	650cd/m² (Peak)
Peak Brightness (Typ.)	800cd/m² (Peak)
Pixel Pitch (H x V)	0.18159mm x 0.18159mm
Resolution	3840 x 2160
Response Time (GTG)	14ms (Off-setting), 5ms (Faster-setting)
Size (Inch)	31.5
Size (cm)	80.0051
Surface Treatment	Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)
Viewing Angle (CR≥10)	178°(Right/Left), 178°(Up/Down)

Feature

Hot Key	Yes (2keys)
Brightness stabilization	Yes
Black Stabilizer	Yes
Factory Calibration	Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)
HW Calibration	Yes (True Color Pro)
DICOM Compliant	Yes
Colour Temperature	6500K/7500K/9300K Manual (5000K ~ 10000K)
Flicker safe	Yes
HDR 10	Yes
HDR Effect	Yes
OSD Language	17 Language
PBP	Yes (2PBP/3PBP/4PBP)
PIP	Yes
Picture Mode	(SDR) Custom, Mono, Vivid, HDR Effect, DICOM, Calibration 1, Calibration 2, (HDR) Custom, Vivid, Standard
Rotation & Mirror Mode	Yes
Failover Input Switch	Yes
Smart Energy Saving	Yes
Super Resolution+	Yes
Uniformity	Yes

SW Application

True Colour Pro

Yes

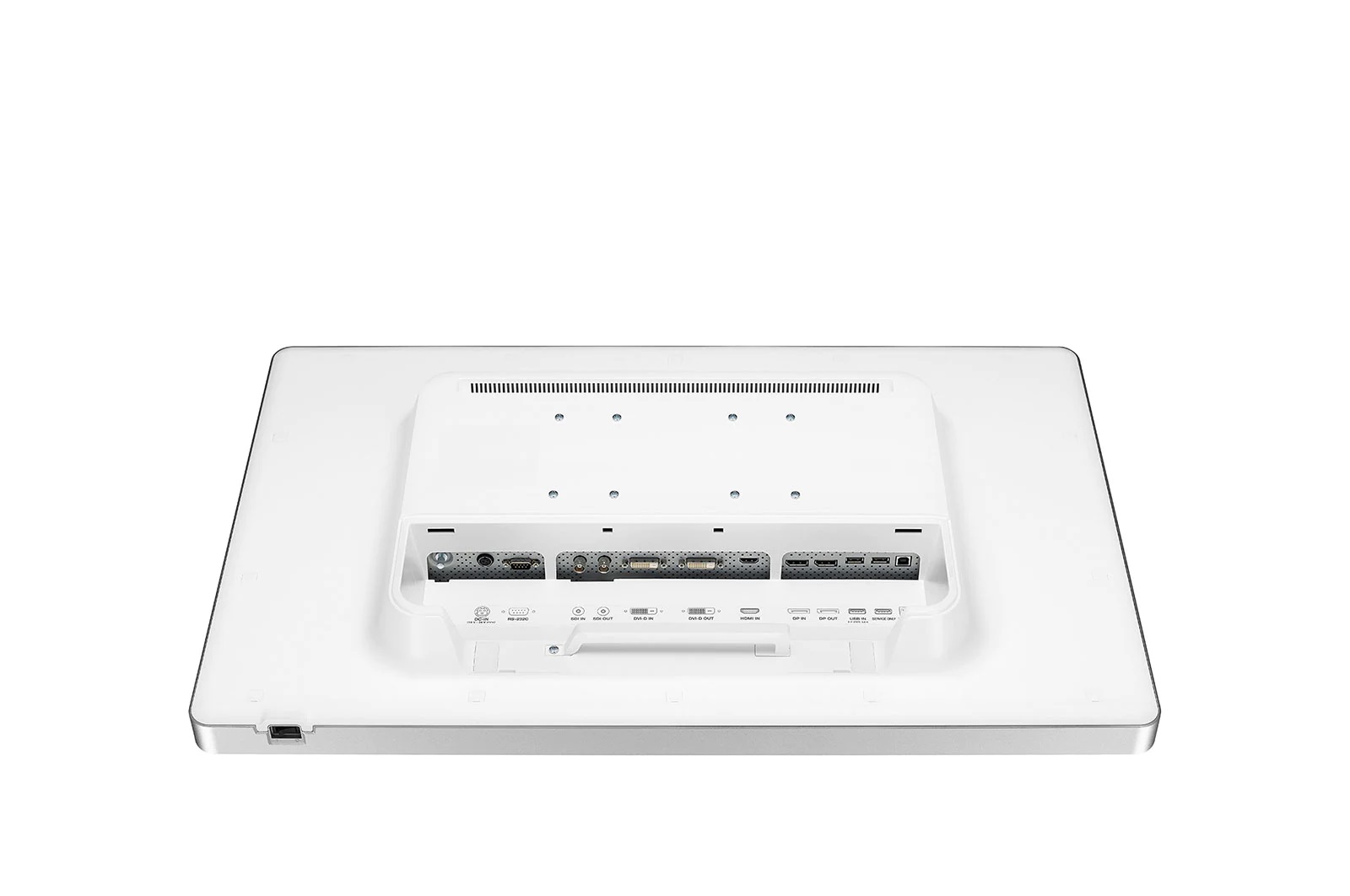

Connectivity

3G-SDI	Yes (3G,INx1/OUTx1)
DisplayPort	Yes (in 1ea/out 1ea)
DP (HDCP Version)	2.2
DP (Max. Resolution at Hz)	3840 x 2160 at 60Hz
DP (H-Frequency)	30~135kHz
DP (V Frequency)	56~61Hz
DP Version	1.2
DVI	Yes (1In / 1Out)
DVI (Max Resolution at Hz)	1920 x 1080 at 60Hz
DVI (H Frequency)	30~83kHz
DVI (V Frequency)	56~61Hz
HDMI	Yes (1ea)
HDMI (HDCP Version)	2.2
HDMI (Max. Resolution at Hz)	3840 x 2160 @60Hz
HDMI (H Frequency)	30~135kHz
HDMI (V Frequency)	56~61Hz
HDMI Version	2.0
RS-232	Yes (1ea)
USB Downstream Port	Yes (1ea/ver2.0)
USB Upstream Port	Yes (1ea/ver2.0)
[Location]	Bottom

Power

AC Input	100-240Vac, 50/60Hz
DC Output	19 - 24V, 6.32A - 5.0A (24V Ready)
Power Consumption (DC Off)	Less than 0.3W
Power Consumption (Max.)	120W
Type	External Power (Adapter)

Mechanical

Borderless Design	Normal
Colour (Back Cover)	White
Colour (Middle Cabinet)	Silver
Display Position Adjustments	No Stand
Down Height	No Stand
Height Range	No Stand
Machanical Power Switch	Yes
OneClick Stand	No Stand
Pivot	No Stand
Swivel	No Stand
Tilt	No Stand

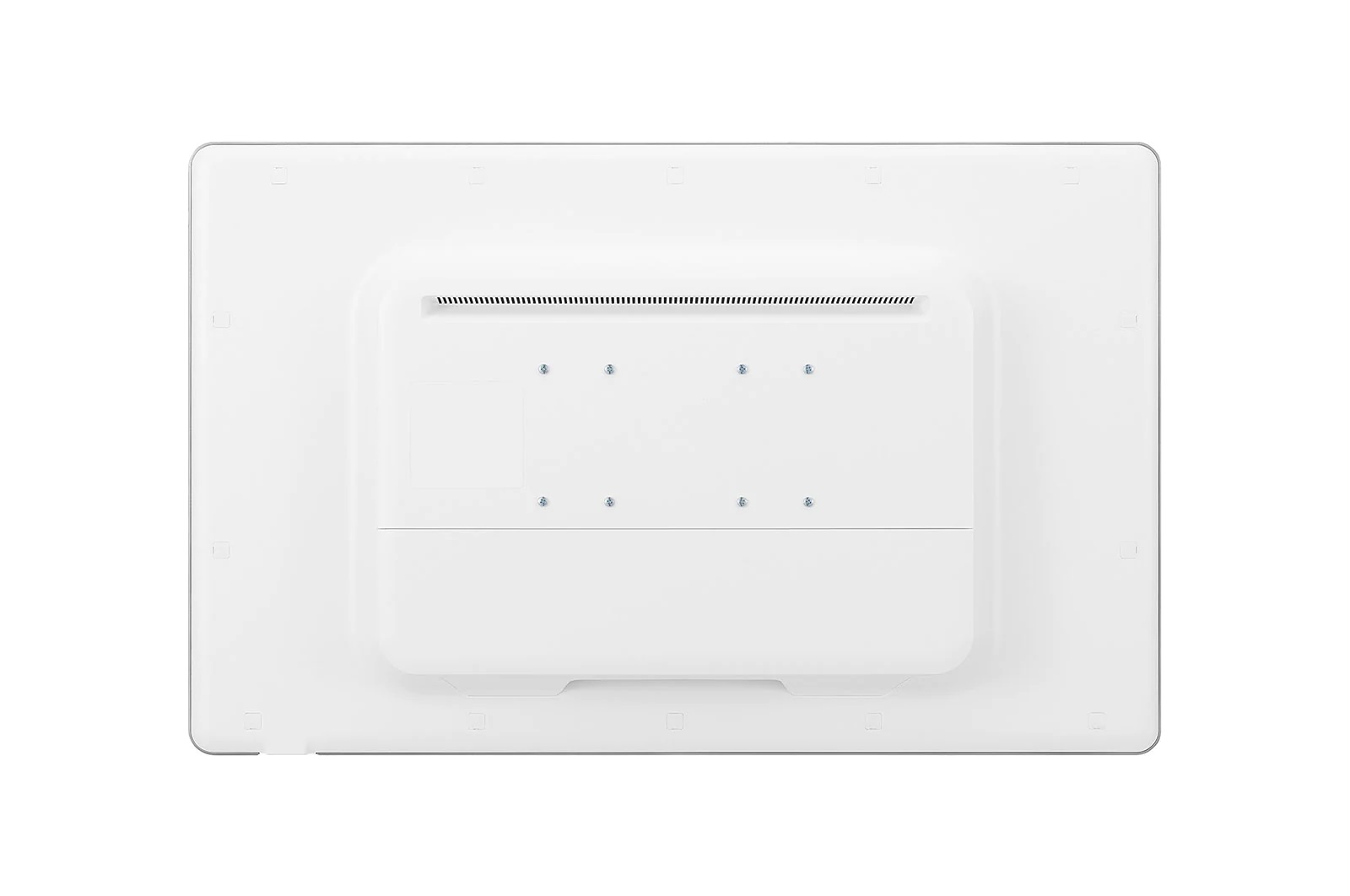

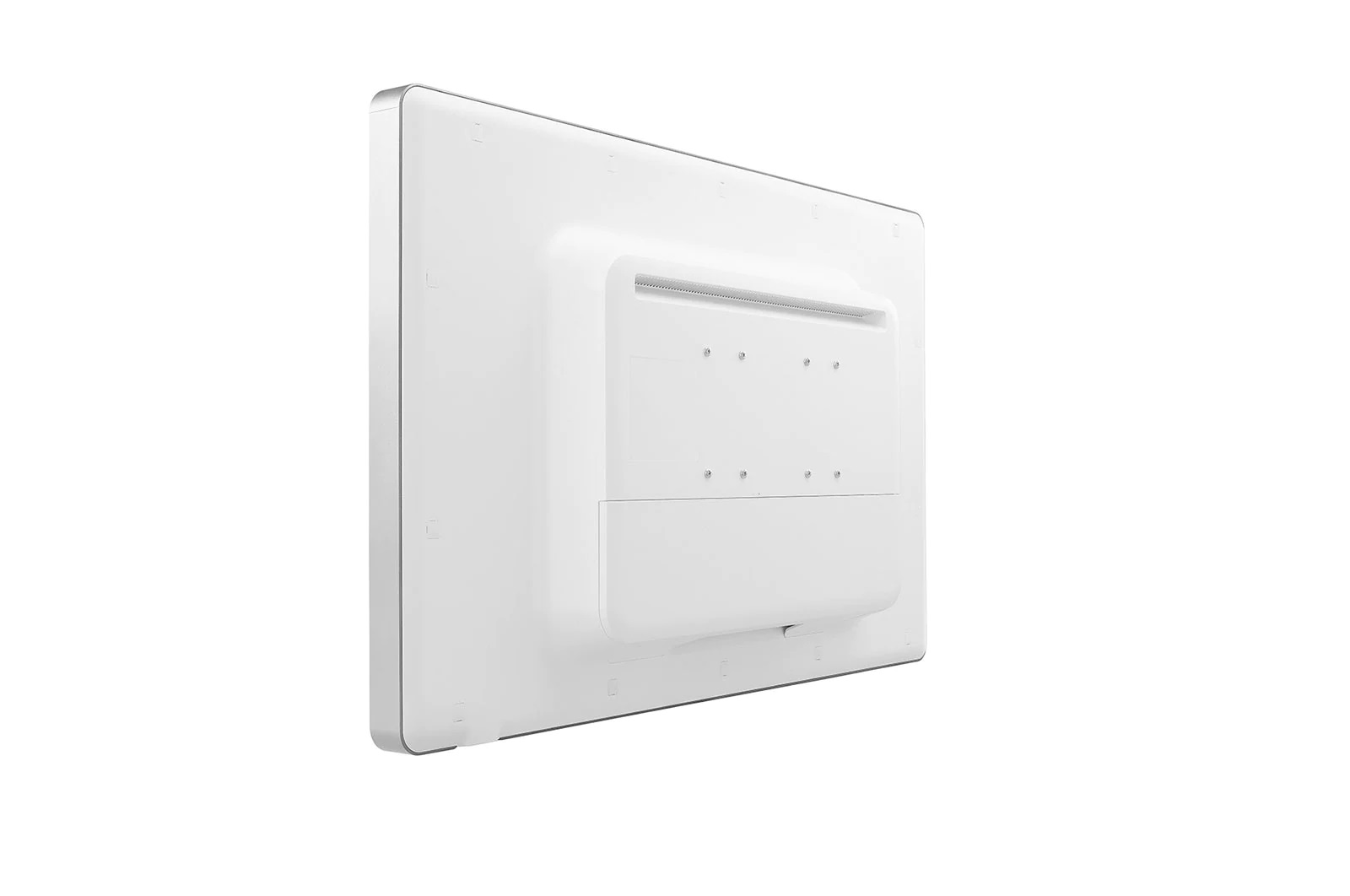

Wall Mount Size	200 x 100mm/100 x 100mm

Dimensions/Weight

Dimension in Shiping (W x H x D)	883 x 599 x 200 mm
Dimension with Stand (W x H x D)	No Stand

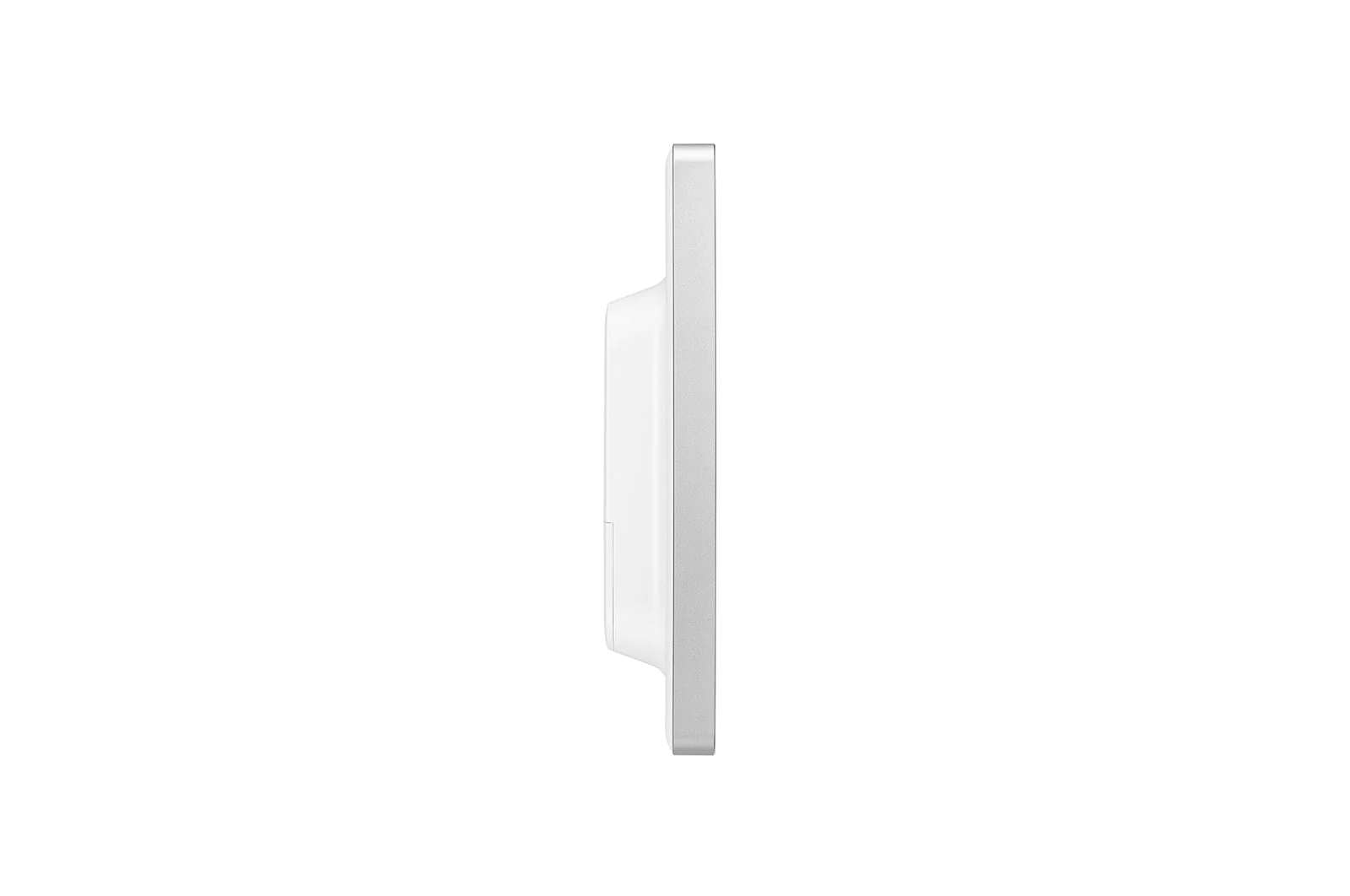

Dimension without Stand (W x H x D)	764.6 x 480.8 x 94.4 mm
Pallet Stuffing (20ft/40ft/40ft HC)	216EA/405EA/495EA
Weight in Shipping	17.4kg (38.4lb)
Weight with Stand	No Stand
Weight without Stand	12.4kg (27.3lb)

Accessory

Adapter	Yes
Adapter (Colour)	White
Calibration Report (Paper)	Yes
Display Port	Yes
Display Port (Colour/Length)	Black/1.8m
HDMI	Yes
HDMI (Colour/Length)	Black/1.8m
Power Cord	Yes
Power Cord (Colour/Length)	White/1.5m

Warranty

time/years	3
time/years	3 (10,000hr)
