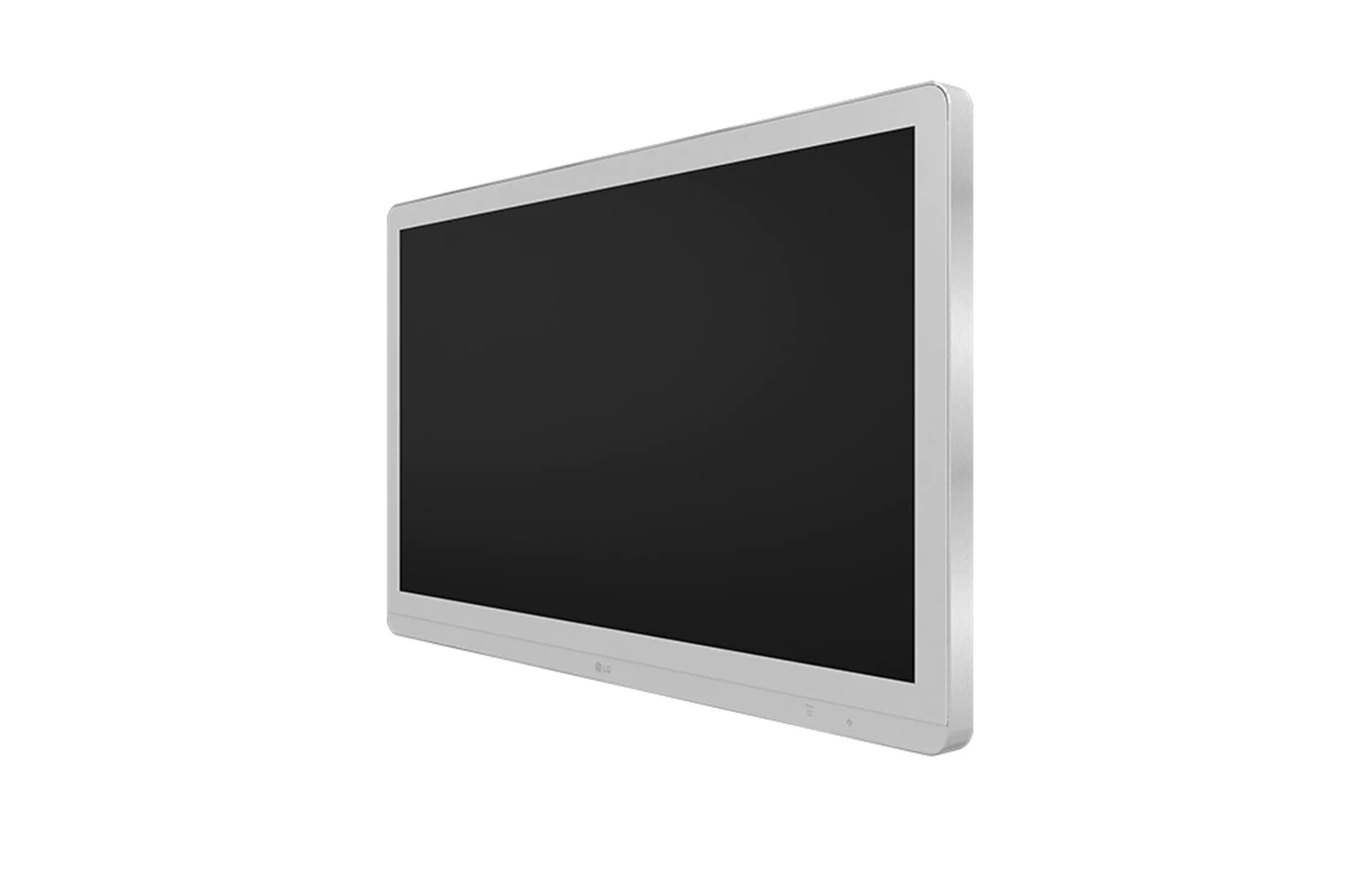

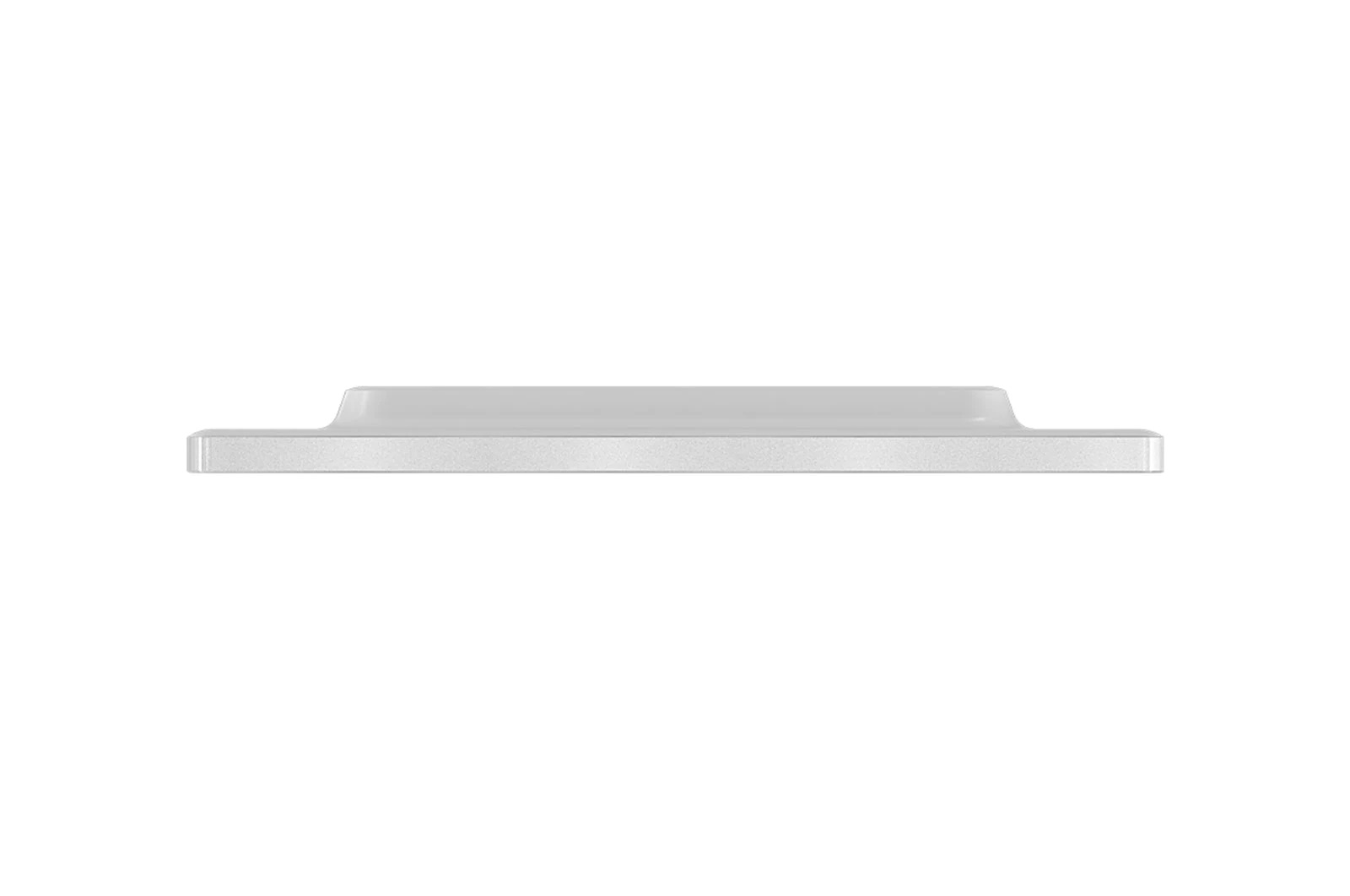

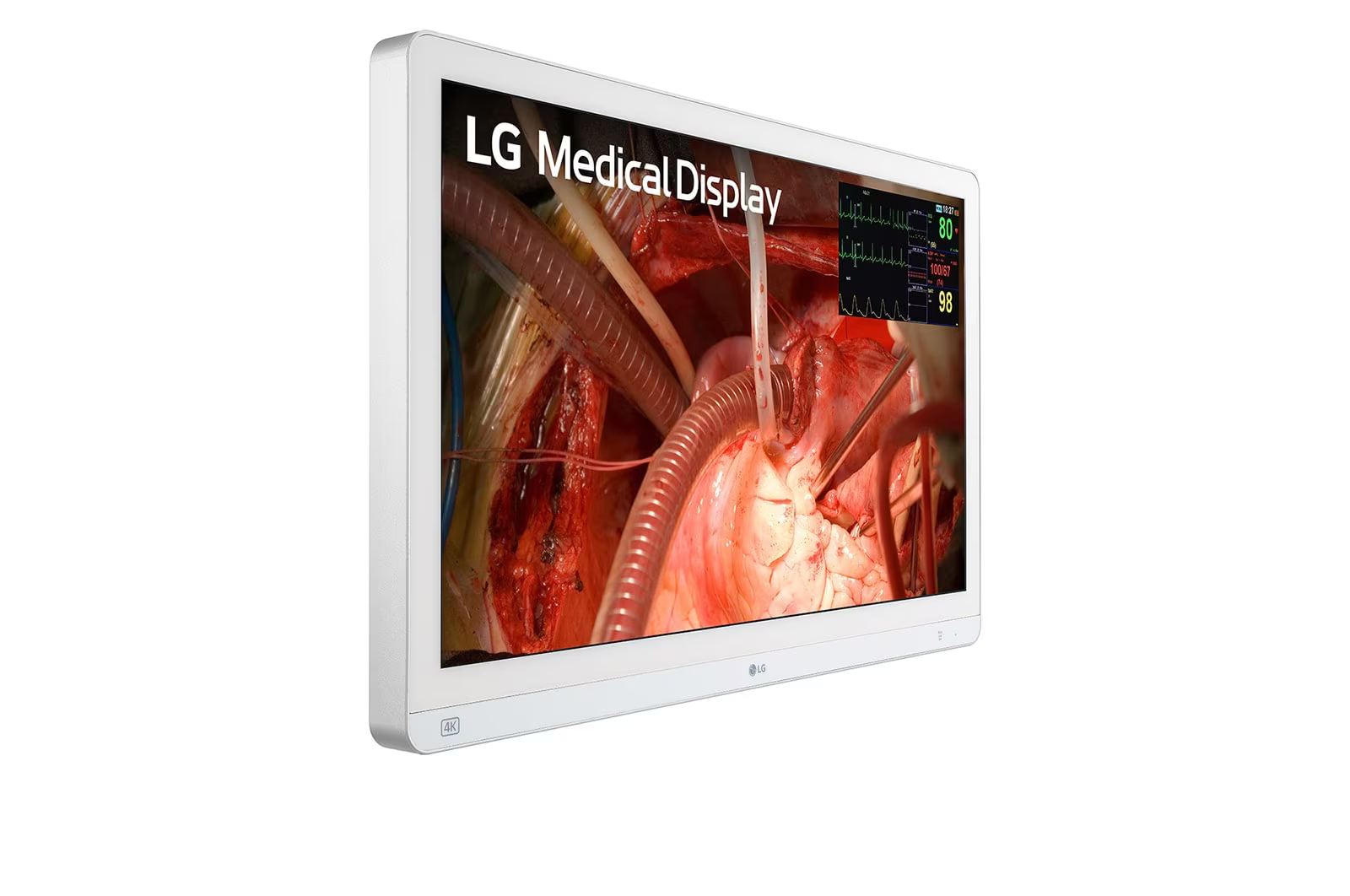

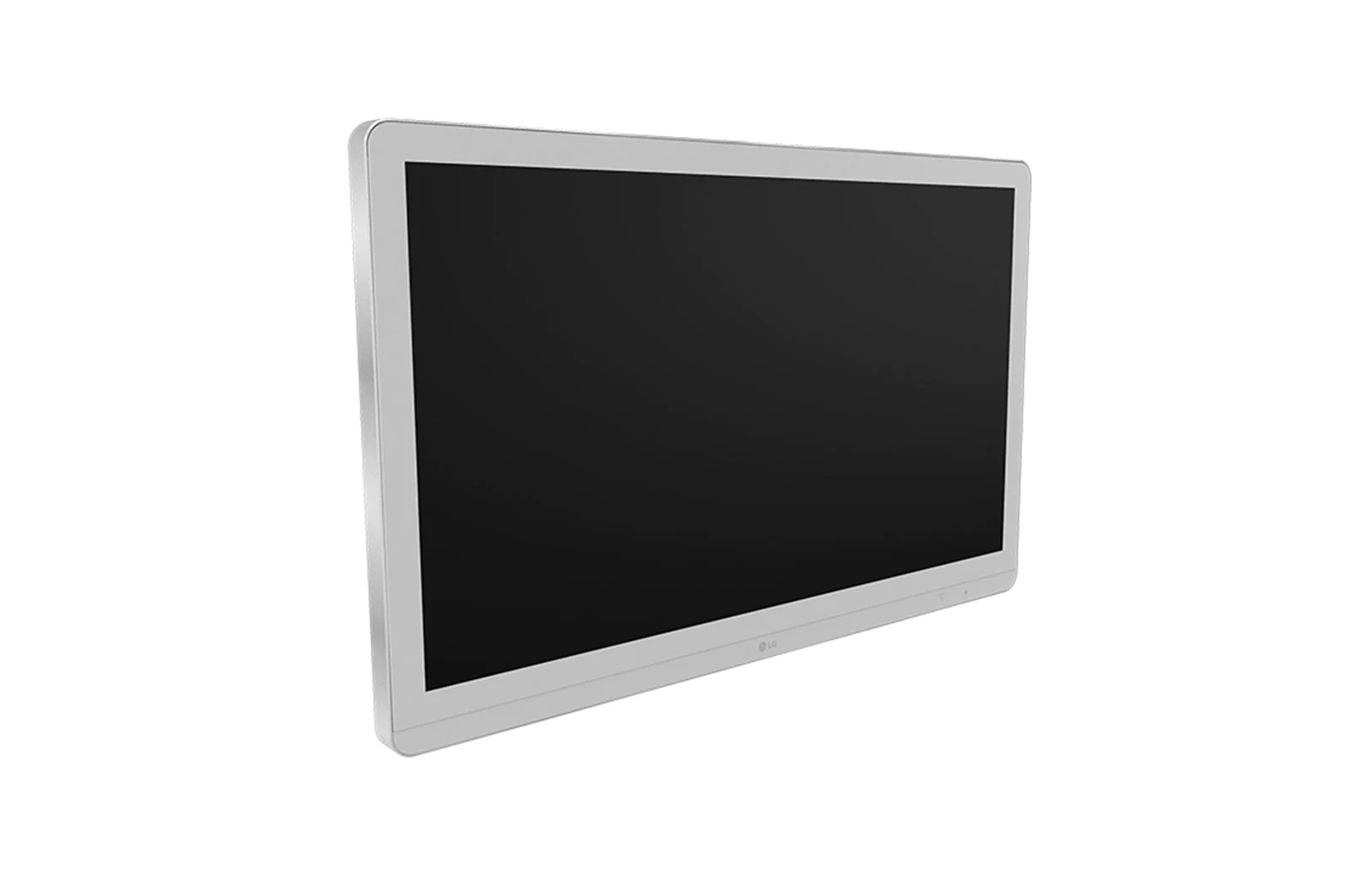

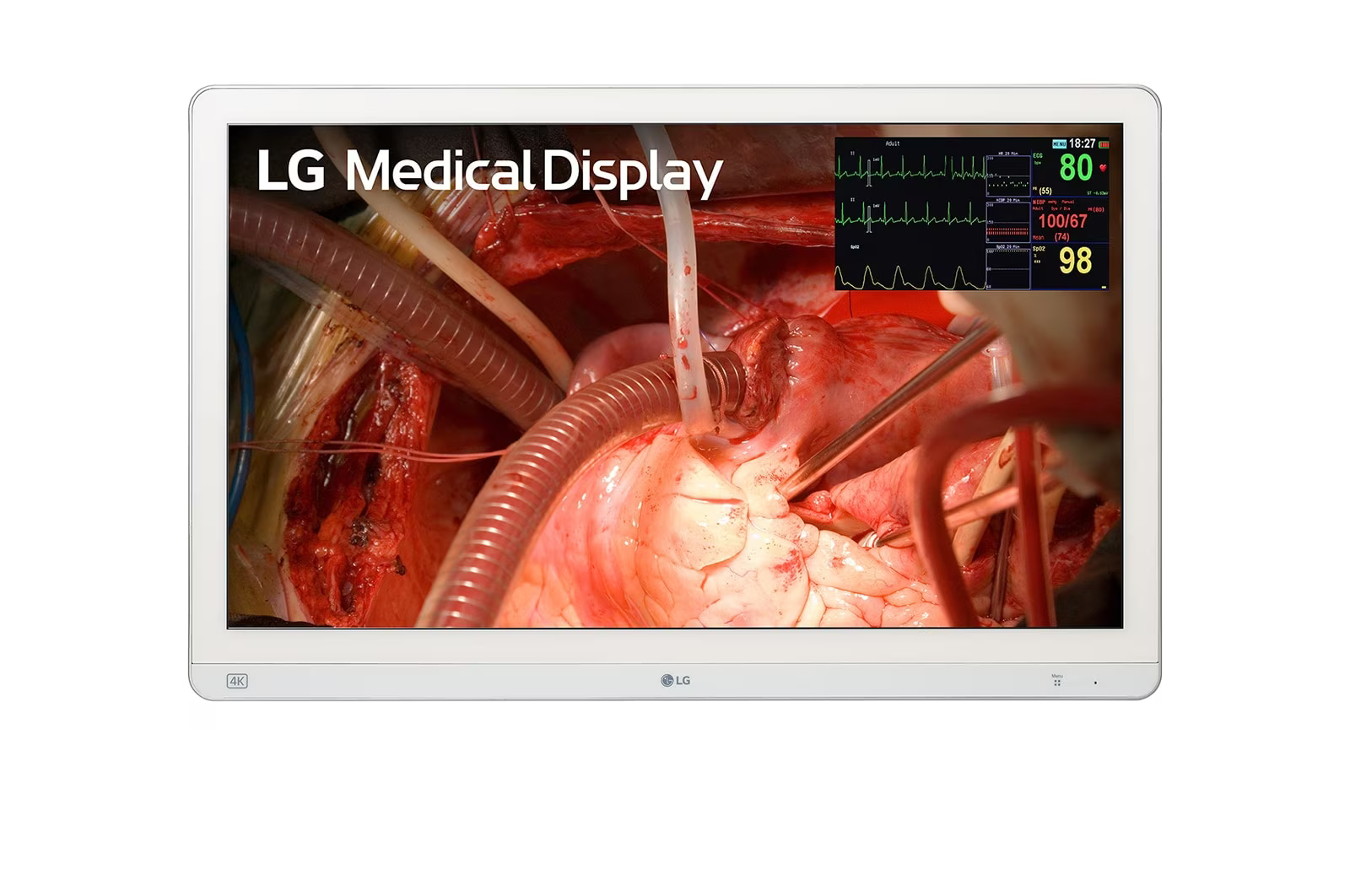

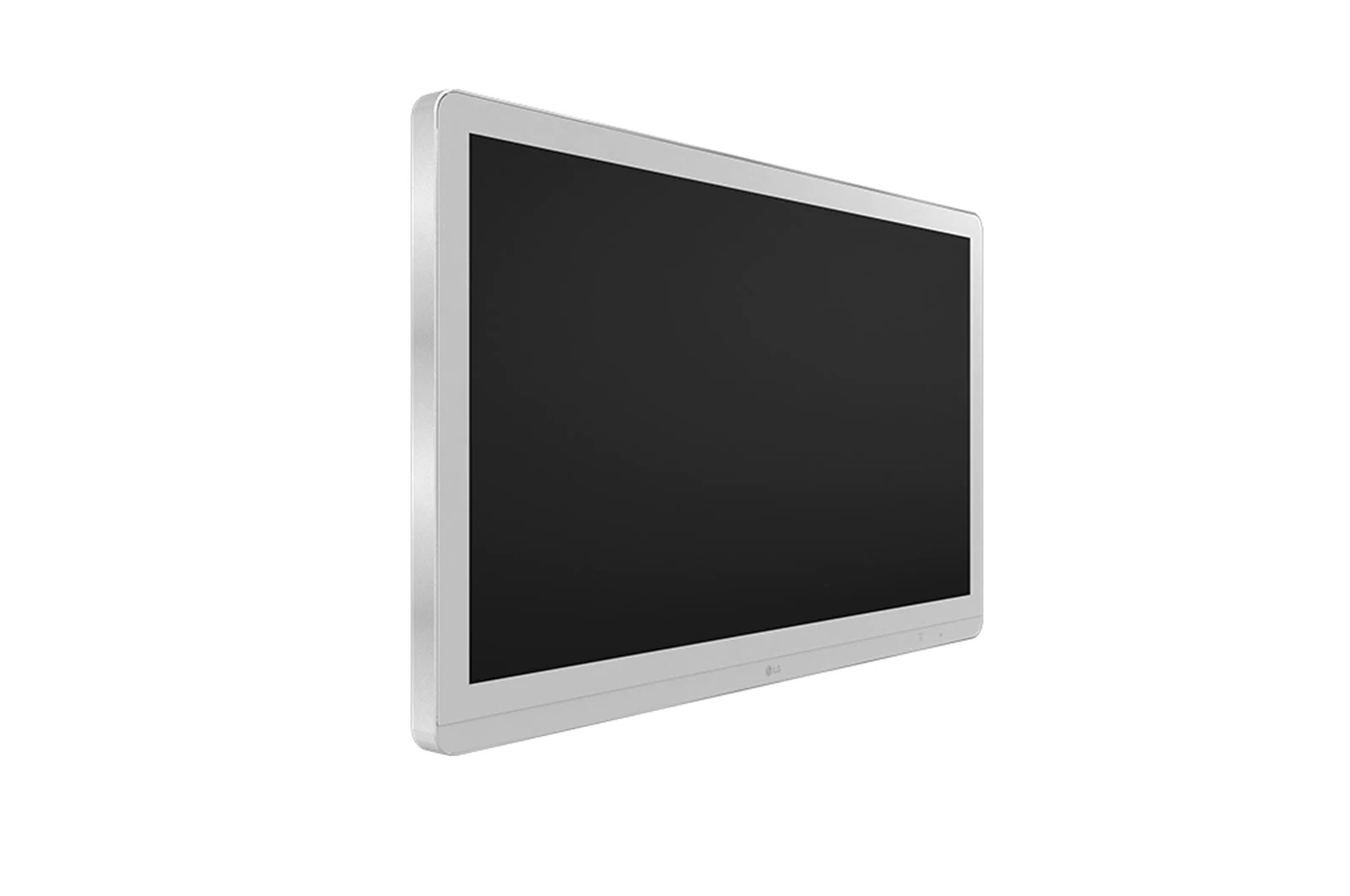

LG 27HQ710S 27" 3G-SDI - 4K Surgical Monitor

Price on request. Please sign up here first.

Free of shipping costs!

Ready to ship today,
Delivery time appr. 1-3 workdays

Order number: SW10371

27'' LG 4K HDR Mini LED Surgical Monitor 27-inch 4K (3840x2160) with Mini-LED HDR10, HDR... more

Close menu

Product information "LG 27HQ710S 27" 3G-SDI - 4K Surgical Monitor"

27'' LG 4K HDR Mini LED Surgical Monitor

27-inch 4K (3840x2160) with Mini-LED
HDR10, HDR Effect
sRGB 139% (Area)
Mirror Mode, Rotation Mode
Protection Glass (1.3t, Anti-reflection, Anti-fingerprint)
Up to 4PBP, PIP / 3G-SDI Support

27” 4K with HDR

The detailed picture quality of the LG surgical monitor meets operating room requirements. With its 27-inch Mini LED 4K display, the LG surgical monitor improves work efficiency not only by enabling detailed observation but also by displaying multiple imaging application

sRGB 139% (Area) & DCI-P3 98% (CIE1976)

The previous LG 27HJ710S model supported sRGB 115% (Area), 98% (Coverage). The 27HQ710S supports the color gamut of sRGB 139 (Area) and DCI-P3 98% (CIE1976).

High Image Quality with Mini-LED

The mini-LED backlighting ensures consistent image quality with no dim areas in the image

Durable Design

IP45 (Front) and IP32 dust and water resistance rating. Configurable failover for redundancy ensuring no loss of time.

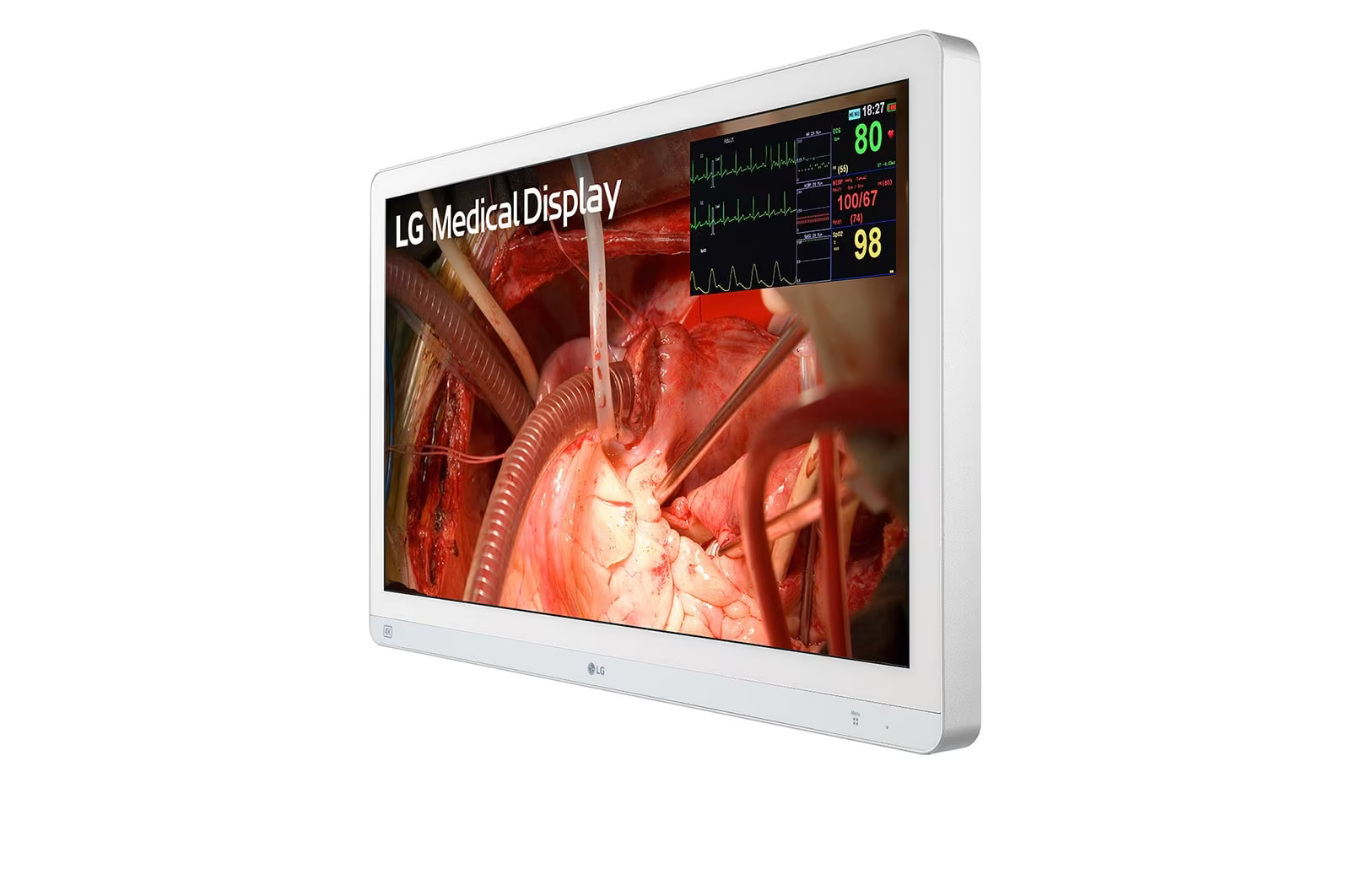

User Convenience

Up to four Picture by Picture layoyt and Picture in Picture, plus mirror and rotation modes.

Related links to "LG 27HQ710S 27" 3G-SDI - 4K Surgical Monitor"

Display Aspect Ratio 16:9 Backlight Dimming Technology Local Dimming... more

Close menu

Specifications "LG 27HQ710S 27" 3G-SDI - 4K Surgical Monitor"

Display

Aspect Ratio
16:9
Backlight Dimming Technology
Local Dimming
Backlight Technology
Mini LED
Brightness (Typ.)
800cd
Color Bit
10bit
Color Gamut (Typ.)
DCI-P3 98% (CIE1976, Coverage)
DCI-P3 110.9% (CIE1976, Area)
sRGB 139%(Area),
sRGB 100%(Coverage)
Contrast Ratio (Typ.)
1000:1
Local Dimming Zone
1.5K zones
Peak Brightness (Typ.)
2000
Pixel Pitch(H x V)
0.1554mm x 0.1554mm
Resolution
3840x2160
Response Time (GTG)
5ms (GtG at Faster)
Size (Diagonal, Inch)
27
Size (H x V)
596.74 x 335.66mm
(23.49 x 13.21")
Surface Treatment
Protection Glass(1.3t, Anti-Reflection, Anti-fingerprint)
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)

Feature

Hot Key
Yes (2keys)
Brightness stabilization
Yes
Black Stabilizer
Yes
HW Calibration
Yes(LG Calibration Studio)
DICOM Compliant
Yes
Color Temperature
6500K / 8500K / 9300K
Manual (5000K ~ 10000K)
Flicker safe
Yes
HDR 10
Yes
HDR Effect
Yes
PBP
Yes (2PBP/3PBP/4PBP)
PIP
Yes
Rotation & Mirror Mode
Yes
Failover Input Switch
Yes
Smart Energy Saving
Yes
Super Resolution+
Yes

SW Application

LG Calibration Studio (True Color Pro)
Yes

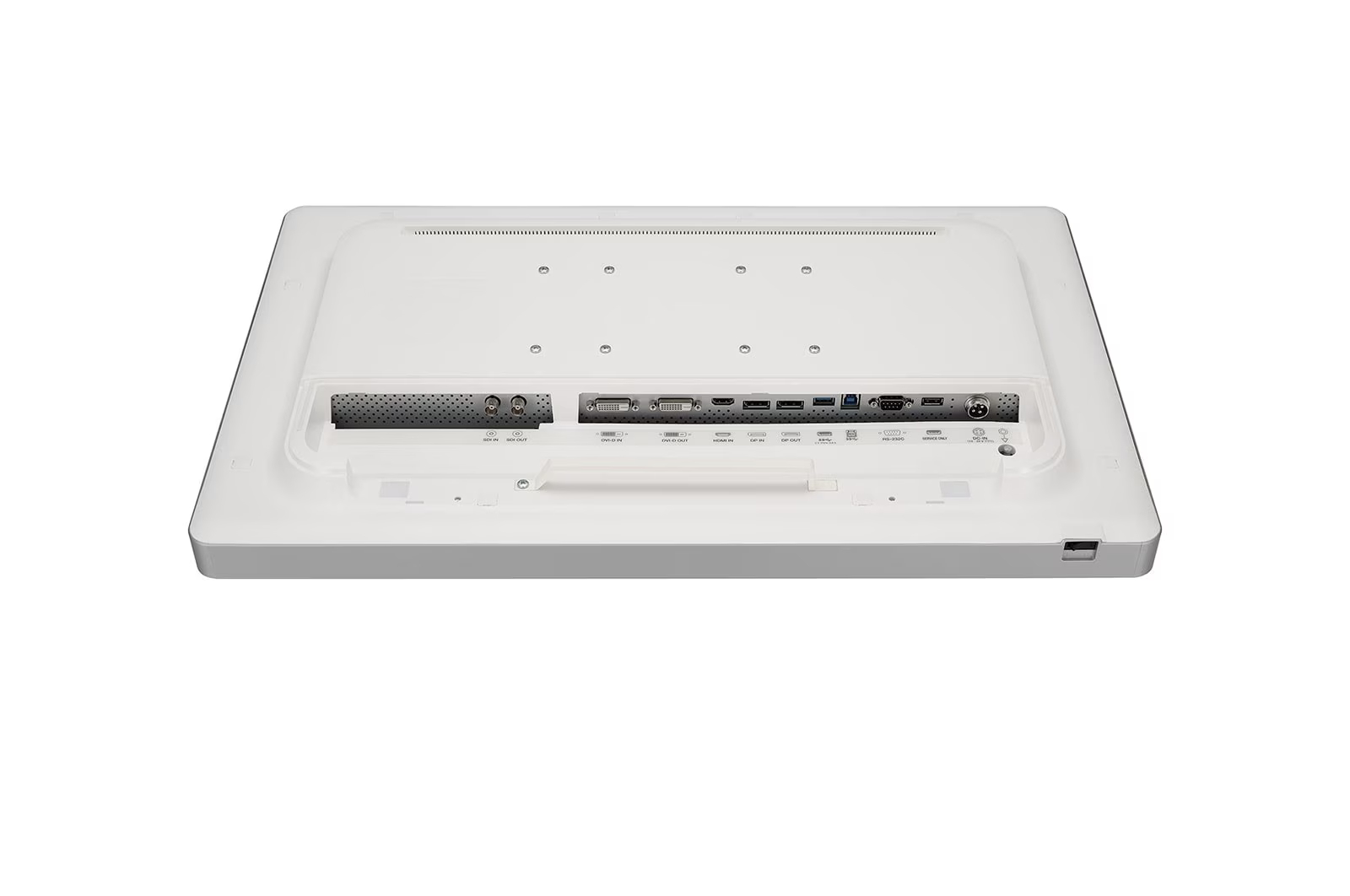

Connectivity

3G-SDI
Yes(3G,INx1/OUTx1)
DisplayPort

Yes(in 1ea/out 1ea)

DVI
YES(1In / 1Out)
HDMI

Yes (1ea)

RS-232
Yes (1ea)
USB Downstream Port

Yes(1ea/ver3.0)

USB Upstream Port
Yes(1ea/ver3.0)

Power

AC Input
100-240Vac, 50/60Hz
DC Output
19V, 6.32A
DC Input (Monitor)
19 - 24V, 6.32A - 5.0A
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Max.)
120W
Type
External Power(Adapter)

Mechanical

Borderless Design
Normal
Display Position Adjustments
No Stand
Down Height
No Stand
Height Range
No Stand
Machanical Power Switch
Yes
OneClick Stand
No Stand
Pivot
No Stand
Swivel
No Stand
Tilt
No Stand

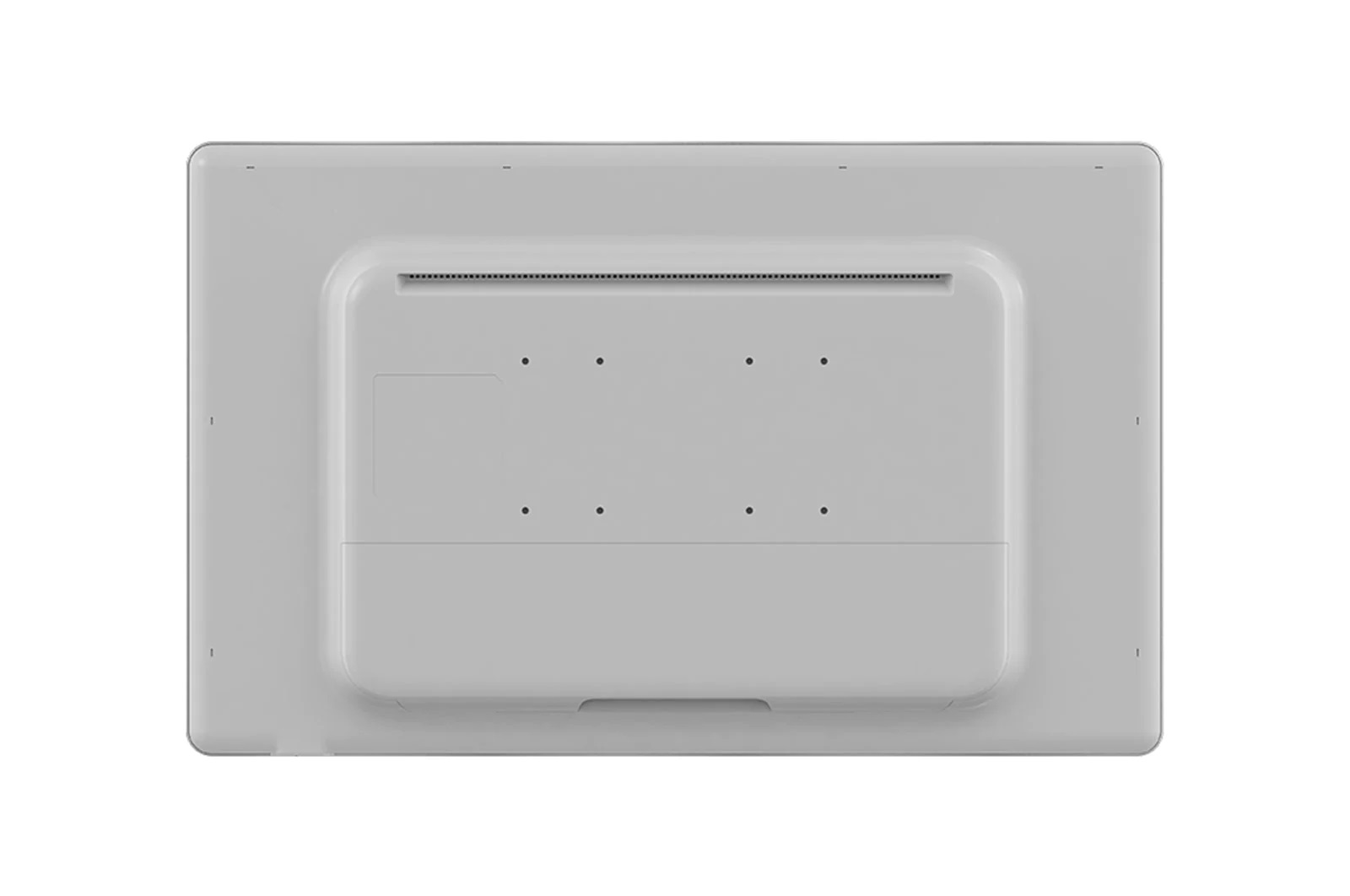

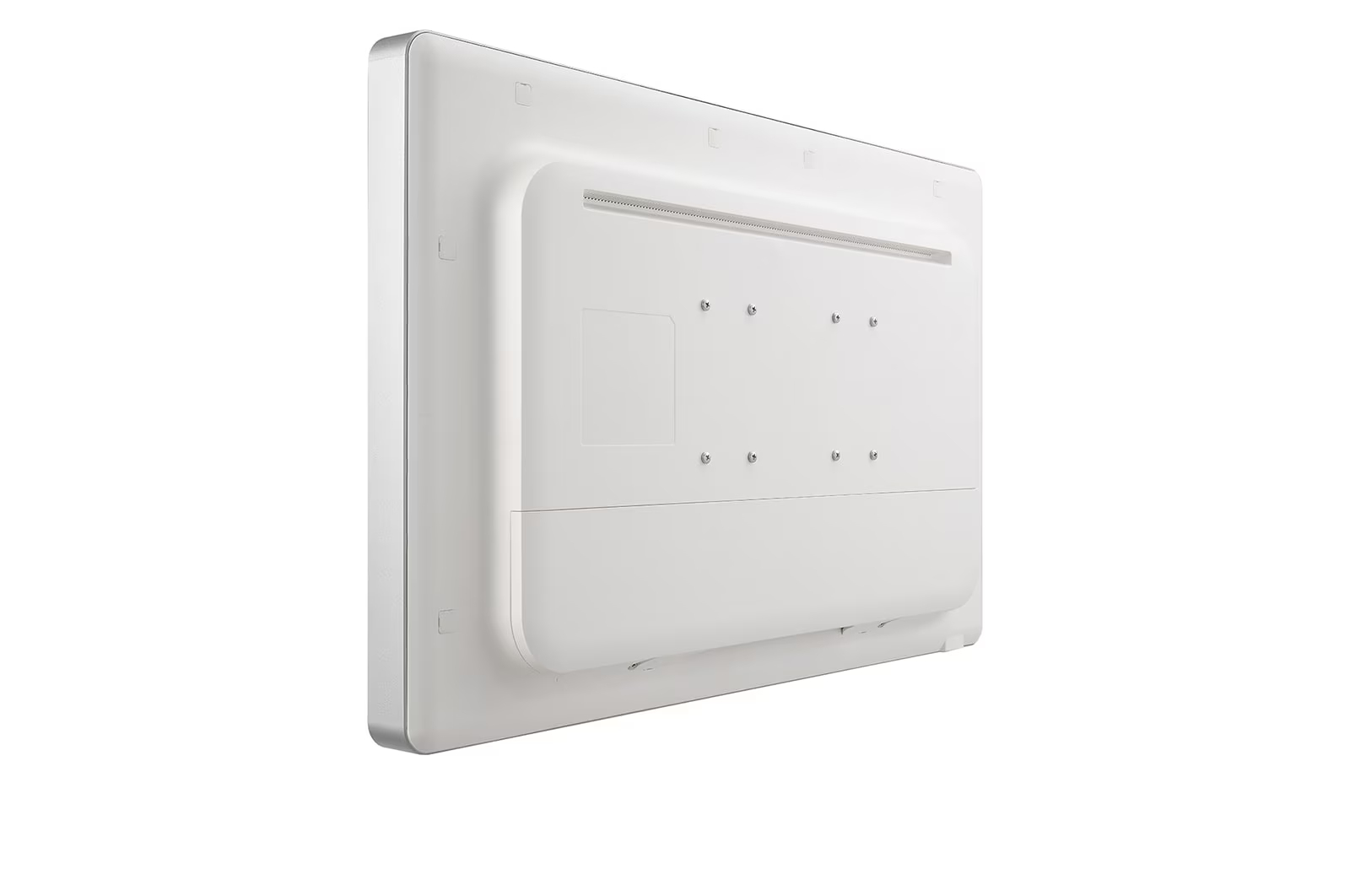

Wall Mount Size
200x100mm/100x100mm

Dimensions/Weight

Dimension in Shipping (W x H x D)
837 x 167 x 536mm
Dimension with Stand (W x H x D)
No Stand
Dimension without Stand (W x H x D)
650.8 x 411.7 x 66.6mm
Pallet Stuffing (20ft/40ft/40ft HC)
240 / 528 / 704
Weight in Shipping
11.9kg
Weight with Stand
No Stand
Weight without Stand
8.0kg

Standard

IEC (IEC 60601-1 / IEC 60601-1-2)
EN (EN 60601-1 / EN 60601-1-2)
IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
EN (EN 62368-1 / EN 55032, 55035)
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
CE, MDR, FDA

Registration (Class I)

ISO13485
RoHS
REACH
WEEE
MFDS
IP45/IP32
Vandal-proof
IK06

Accessory

Adapter
Yes
Calibration Report (Paper)
Yes
Display Port
Yes
HDMI
Yes
Power Cord
Yes
